Description
Light Source
Type: 1x 4in1 RGBW4 Osram LEDs
Power source: 60W
Lifetime: 50,000h
Connections
Signal connection: XLR 5 and XLR 3-Pin In / Out
Mains connection: powerCON TRUE1 Out, Schuko output and powerCon
Optical system

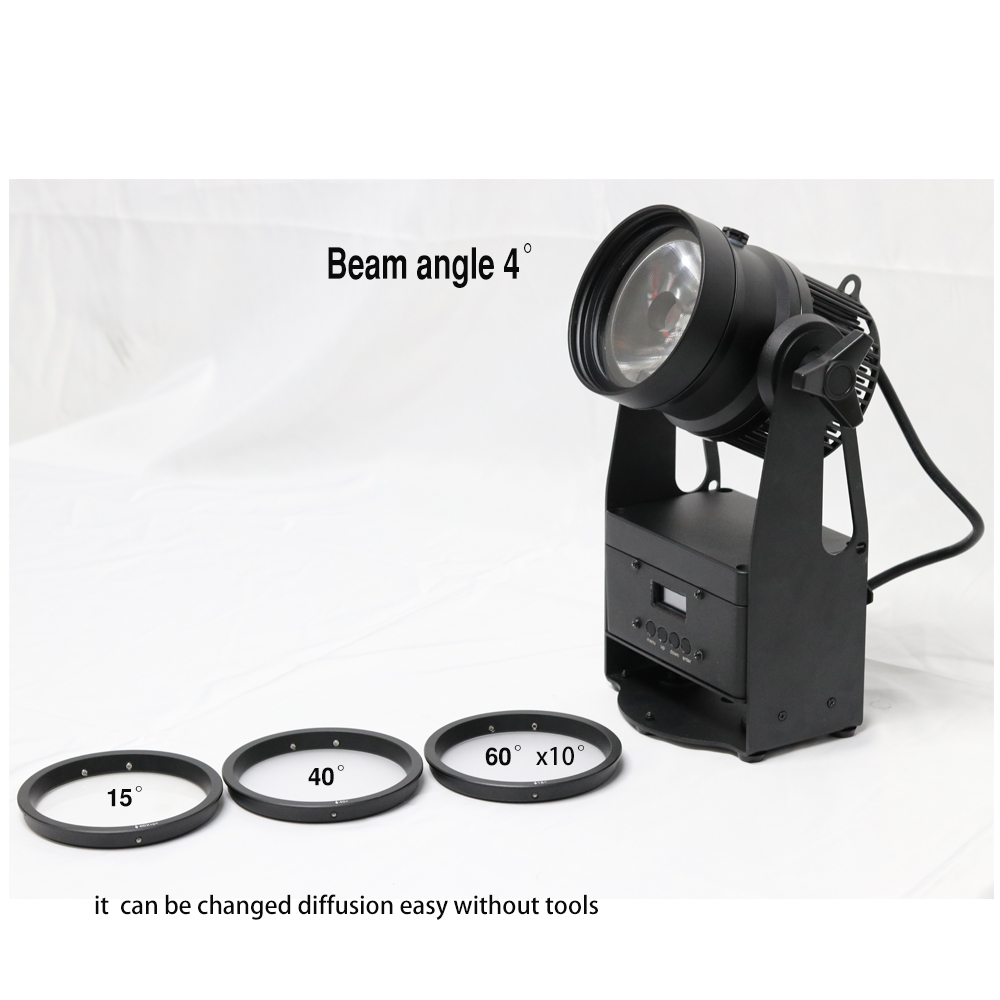

Beam angle : 4°

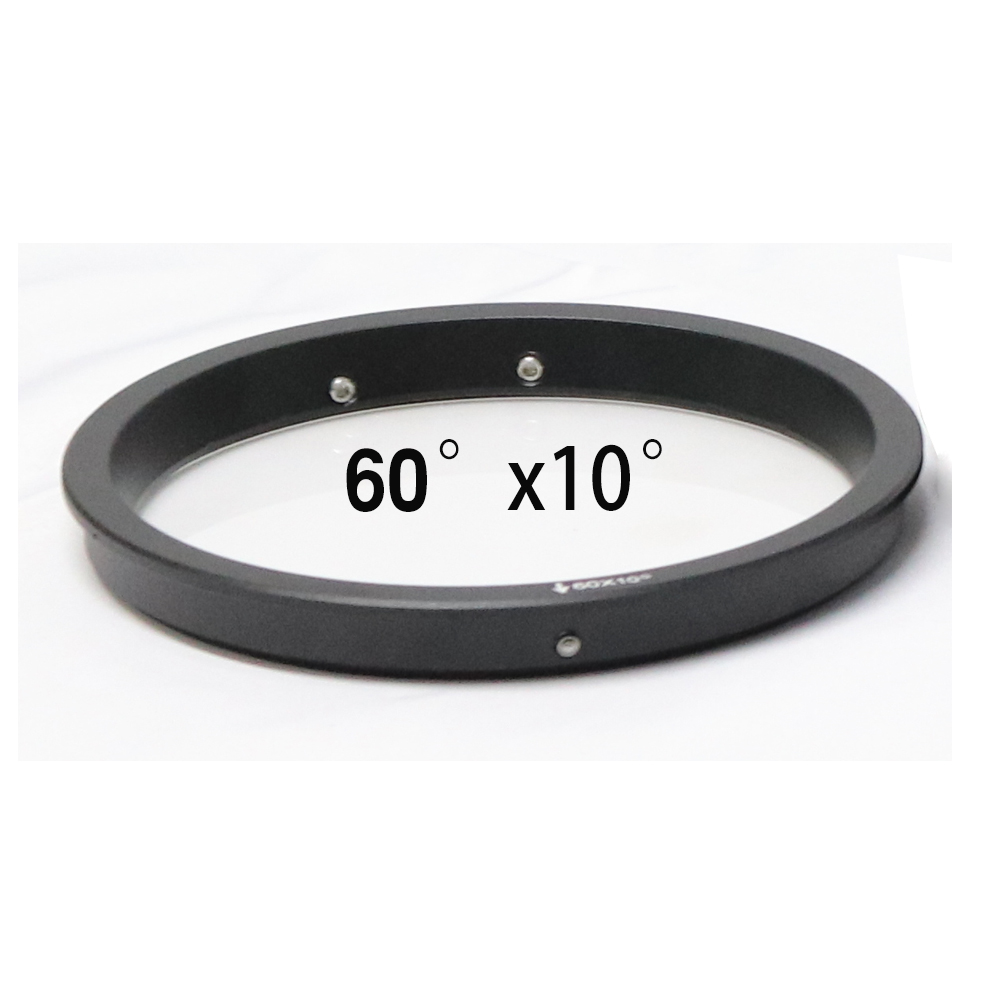

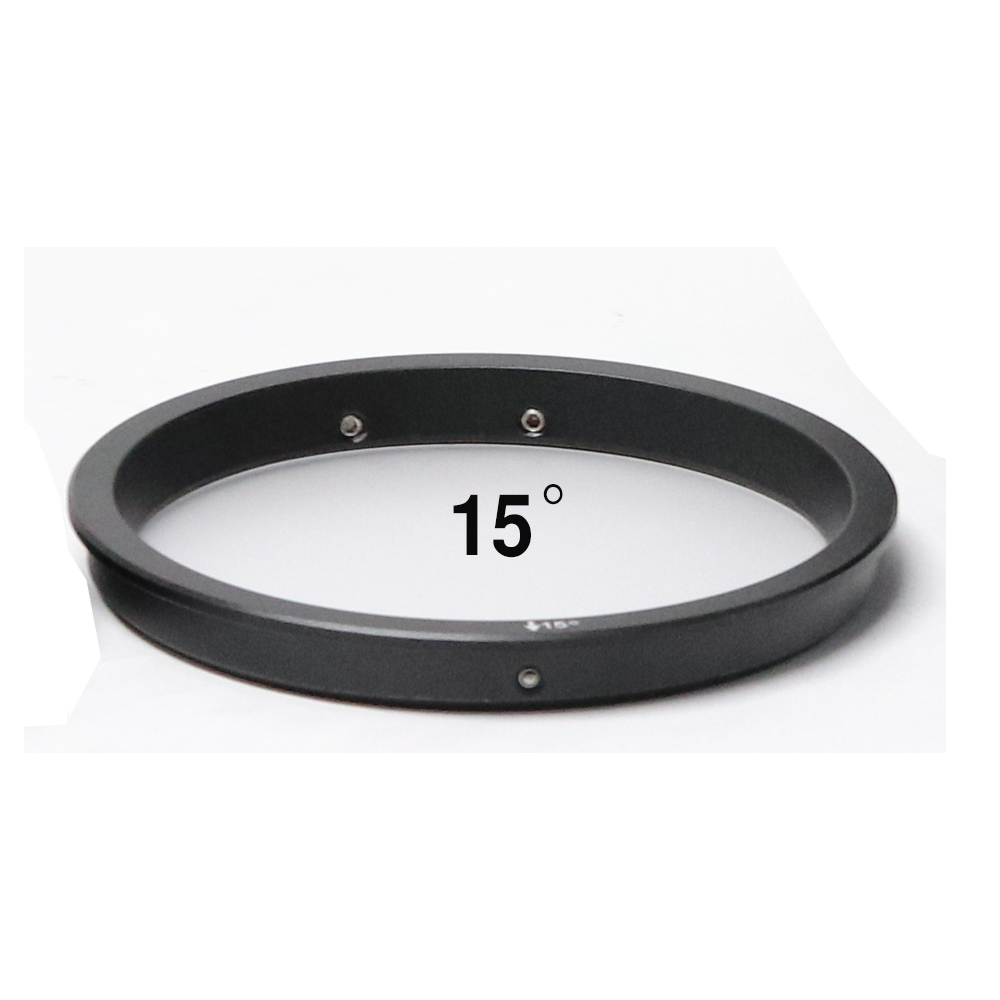

the beam angle to be conveniently adjusted, whether 15º, 40º , 60º or elliptical 60º x 10º
Control & programming
Control systems: DMX/RDM/Manual setting
Display: LCD display with 4 buttons
Protocol (s): DMX (USITT DMX512-A)/RDM(ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 4/8
Control modes: 2
Dimmer curves: Inv. Square / linear / Square Law/ Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz
Connections
Signal connection: XLR 5-Pin In/Out
Mains connection: Seetronic powerCON TRUE1 In/Out
Electrical specifications
Power input: 100-240V AC 50/60Hz
Max power: 60W
Thermal specifications
Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F
Construction
Protection rating: Ip65
Fixture housing: Aluminum
Color: Black
Dimensions and weight
Length: 210 mm/8.27 ins
Width: 110 mm/4.33 ins
Height: 300 mm/11.8 ins
Weight: 5 kg (11 lbs.)
