Airbase 600

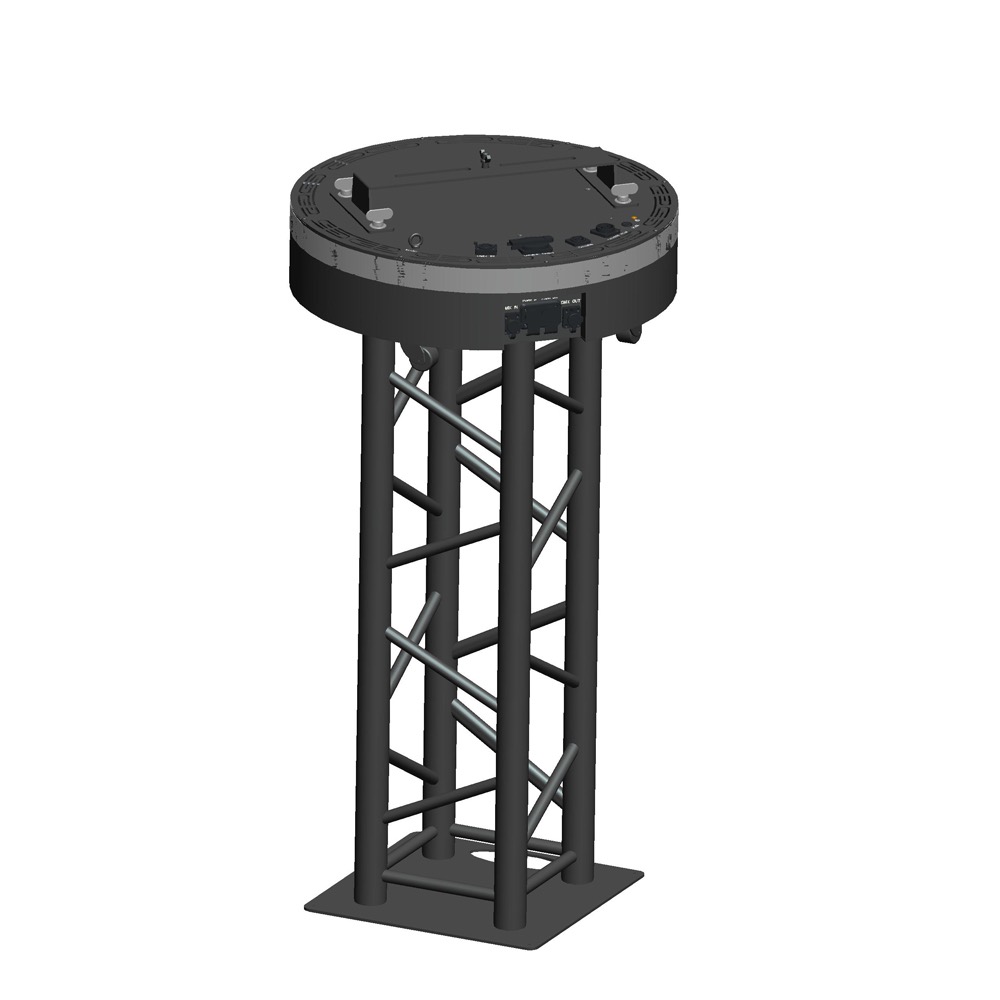

The Airbase 600 is a Rain Cover Platform for standard moving heads with a diameter of up to 60 cm (23.6″). This enables you to use indoor moving heads safely at outdoor events since it’ll protect them from heavy rainfall. It can be placed directly on a truss like a totem since it is equiped with 4x M12 threaded holes for placing on spigots.

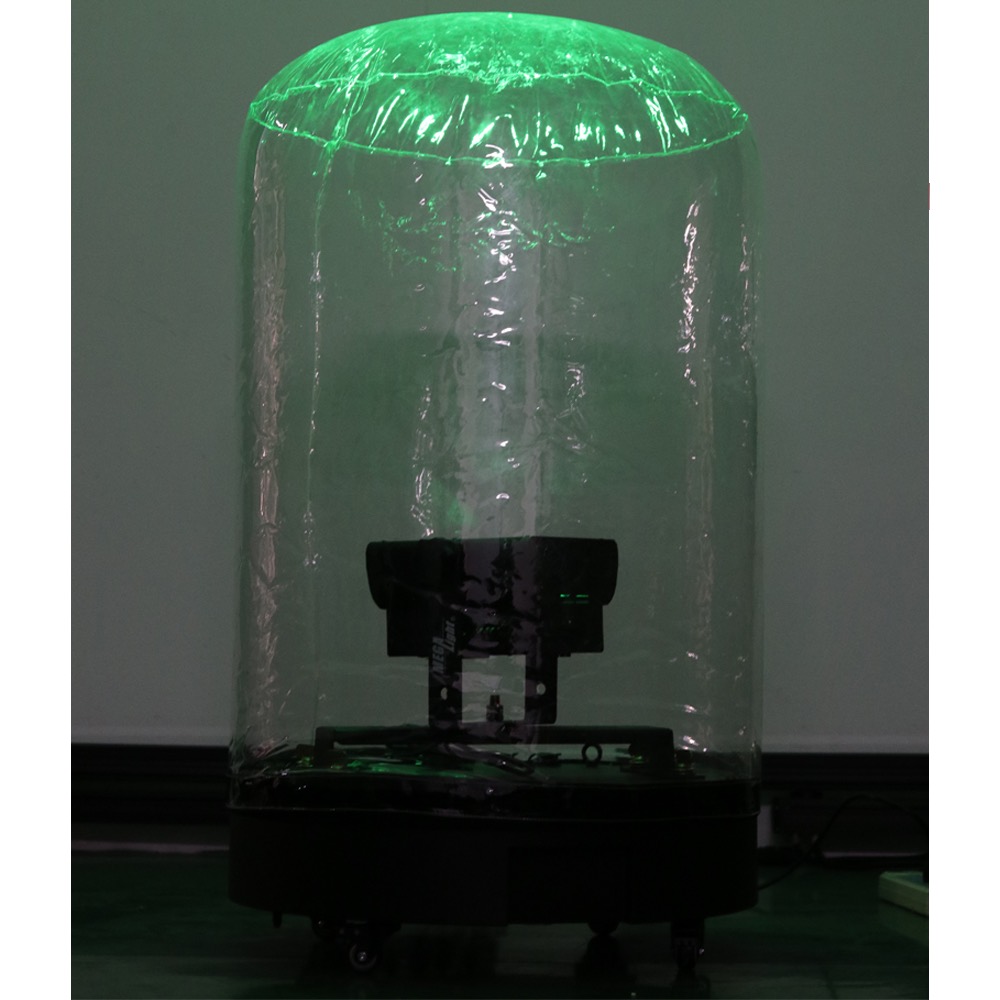

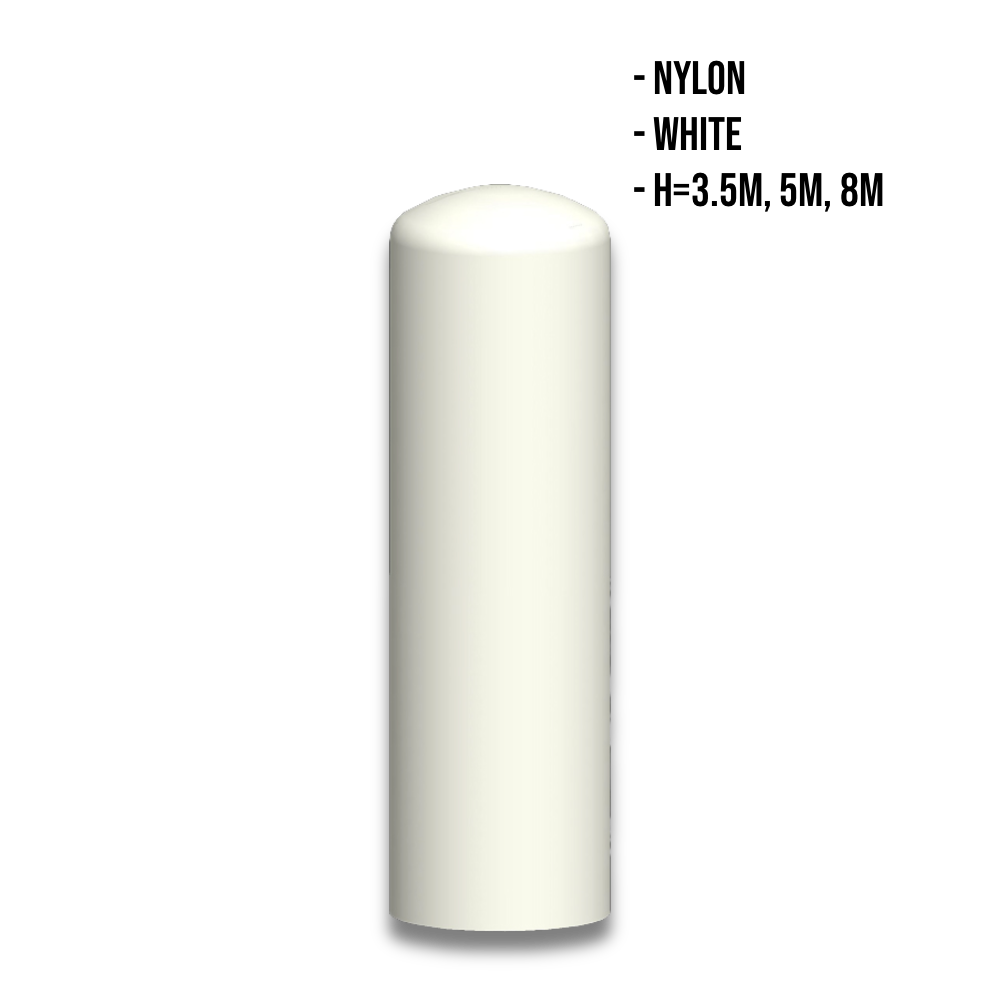

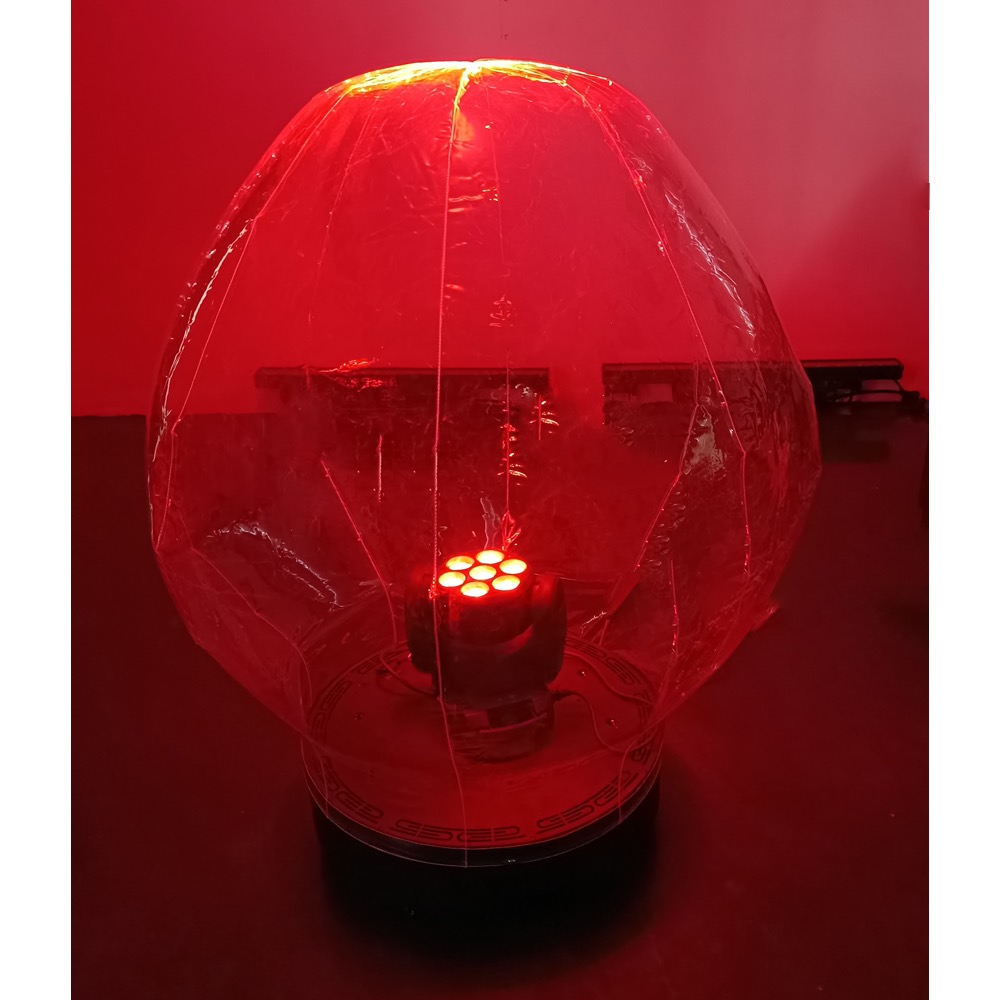

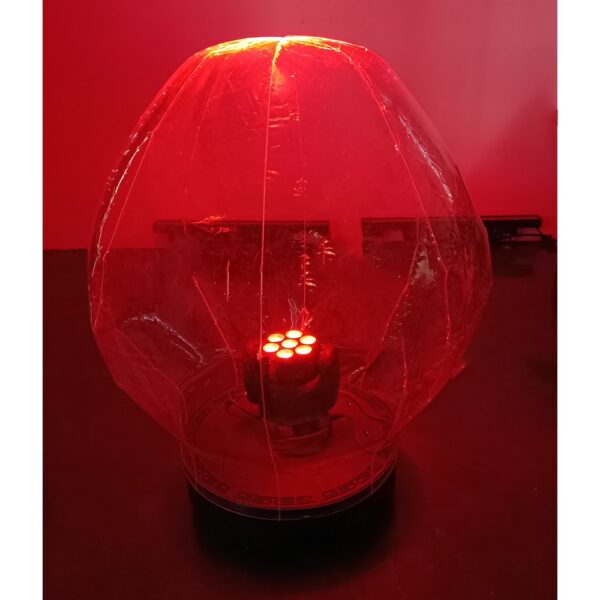

For Airbase 600 there are two different sleeves available which are not included. The ‘dome sleeve’ is suitable for moving heads up to 85 cm high (33.5″) and the ‘cylindrical sleeve’ for moving heads up to 62 cm high (24,4″).
The Airbase 600 has a built-in pressure switch to prevent unwanted damage. The switch will automatically shut down all power when inside pressure diminishes. This can be temporarily overruled by an included bypass switch.

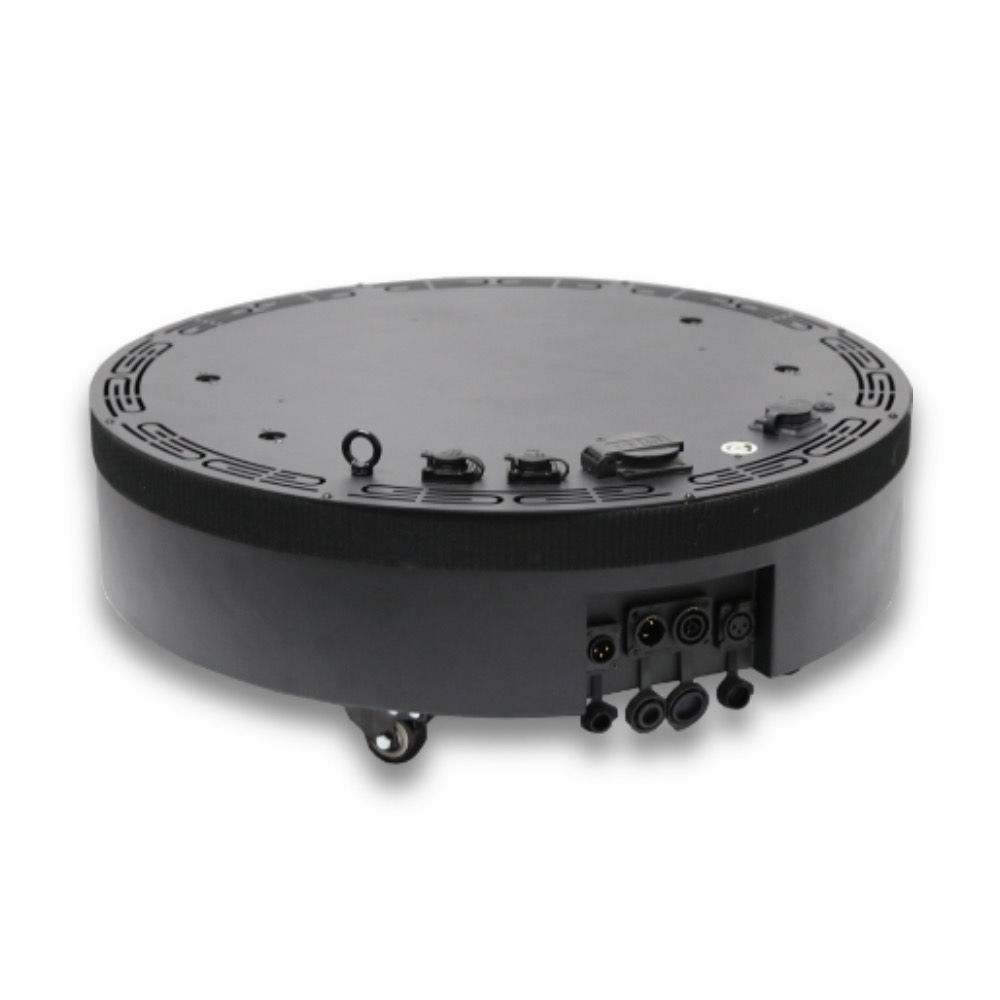

It can be connected through Pro Power True and is equipped with three output connectors (Pro Power, Pro Power True and Schuko) for powering the moving head and/or other devices. Also there is the option to use your own cables since there is a waterproof opening (flap) at the back.

Description

Features

  • 60 cm airbase for standard moving heads
  • Two sleeve heights (62/85 cm) available but not included
  • Built-in pressure switch
  • Bypass switch
  • Pro Power, Pro Power True1 and Schuko output connectors

Connections

Signal connection: XLR 5 and XLR 3-Pin In / Out
Mains connection: powerCON TRUE1 Out, Schuko output and powerCon

Electrical specifications

Power input: 220V AC 50/60Hz
Max power: 120W

Construction

Protection rating: IP65
Fixture housing: Steel
Color: Black

Dimensions and weight

Diameter: 600mm / 23.63 ins
Height: 185mm / 7.29 ins
Weight: 15kg (33 lbs.)
