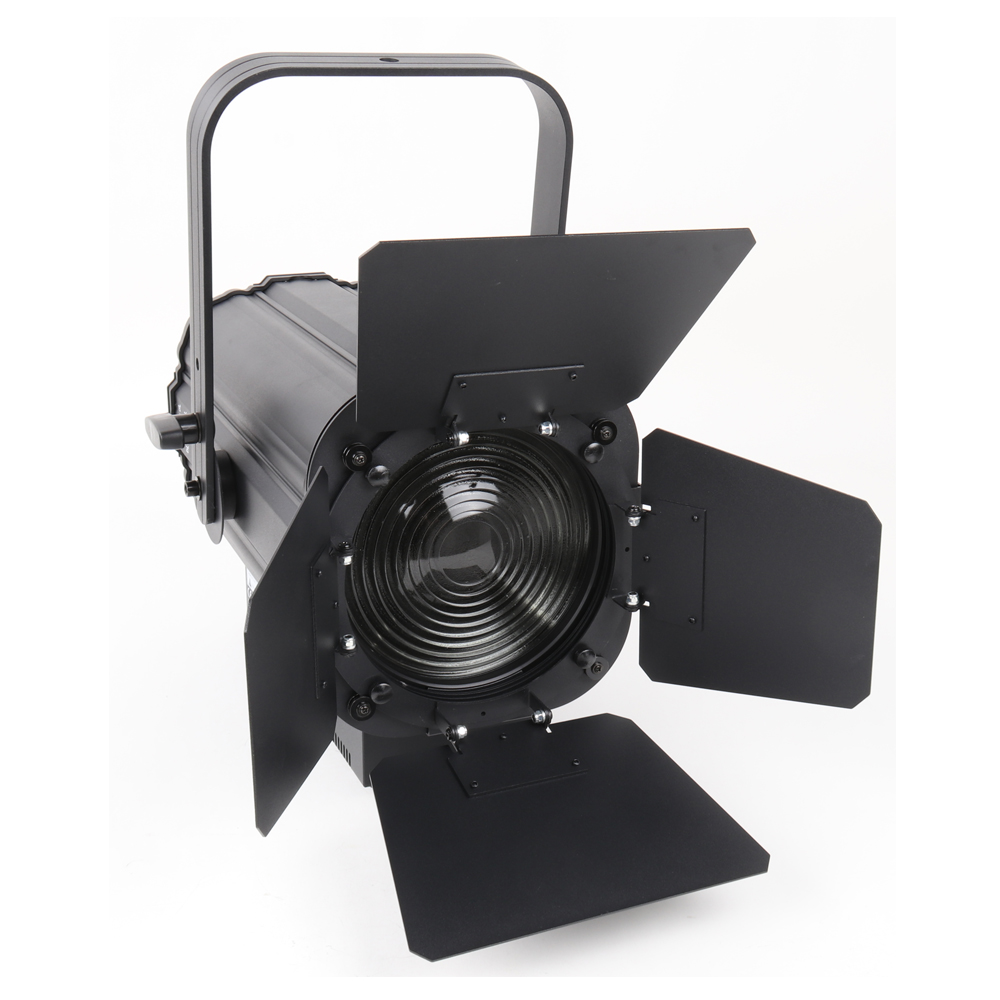

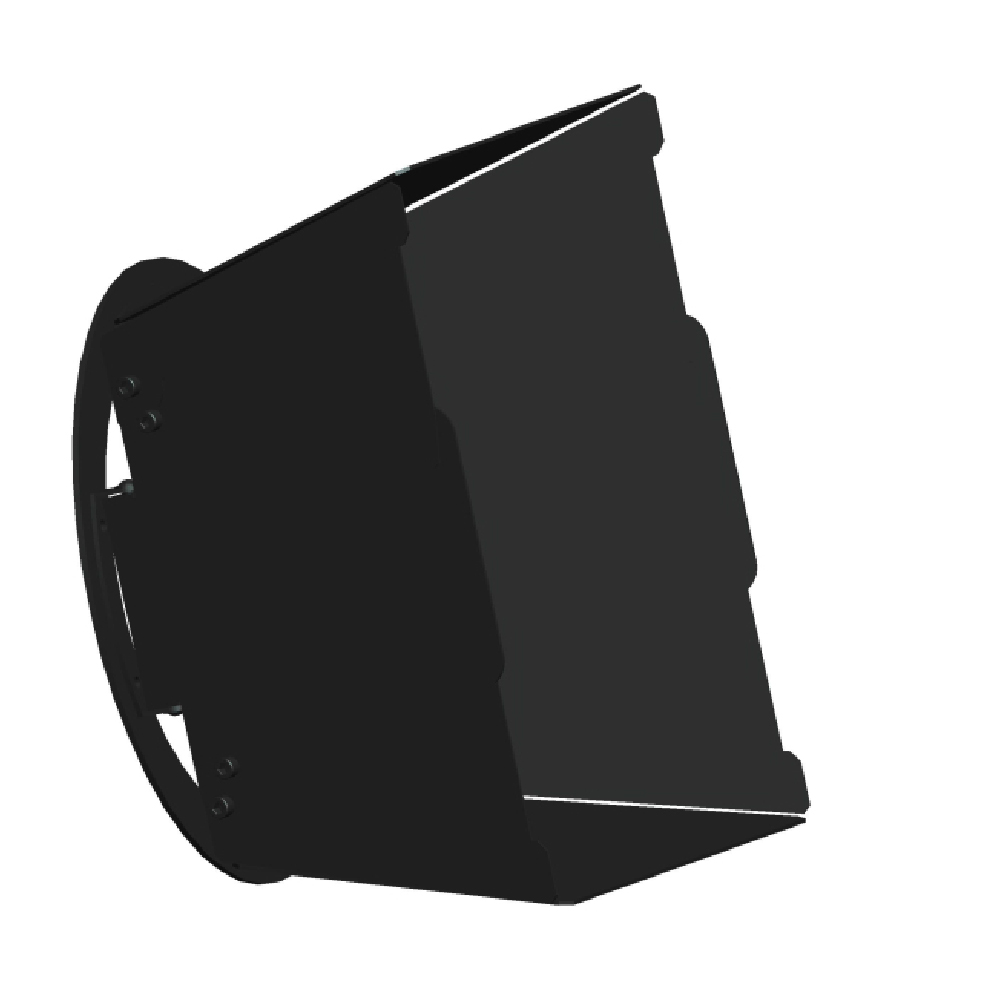

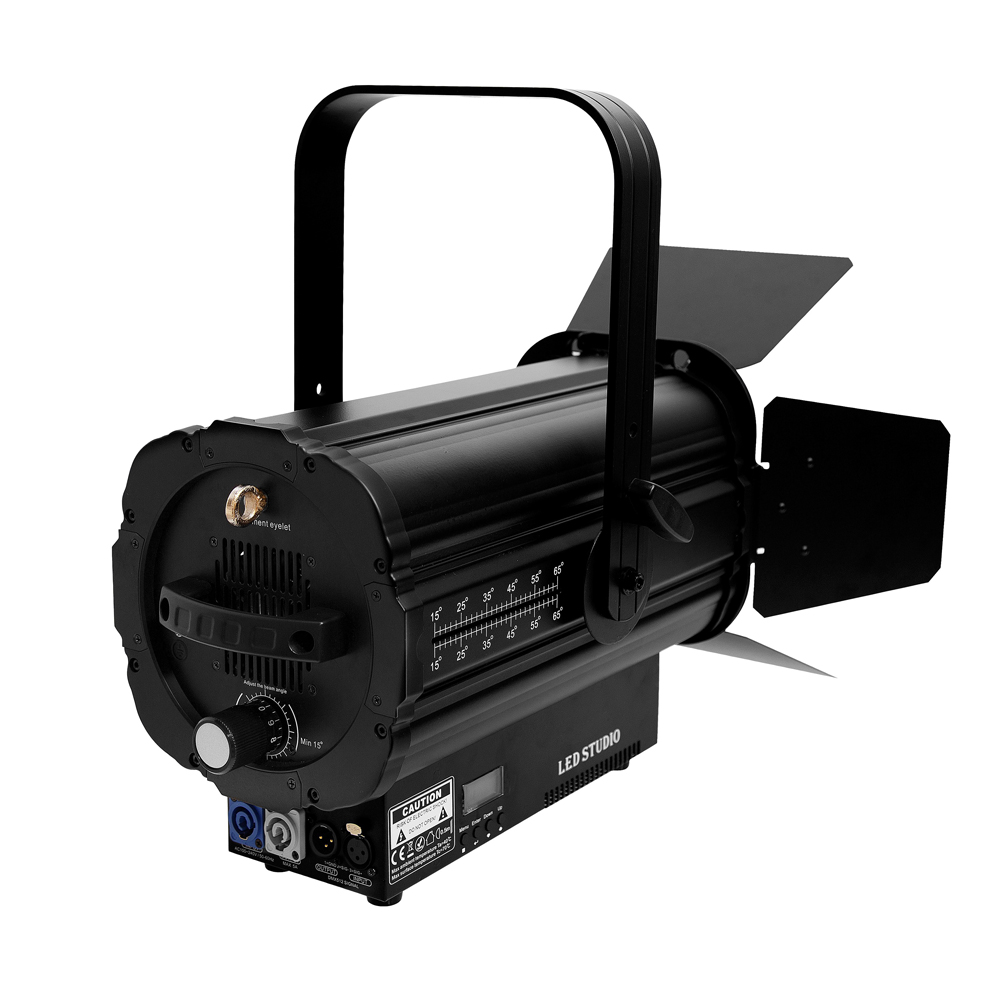

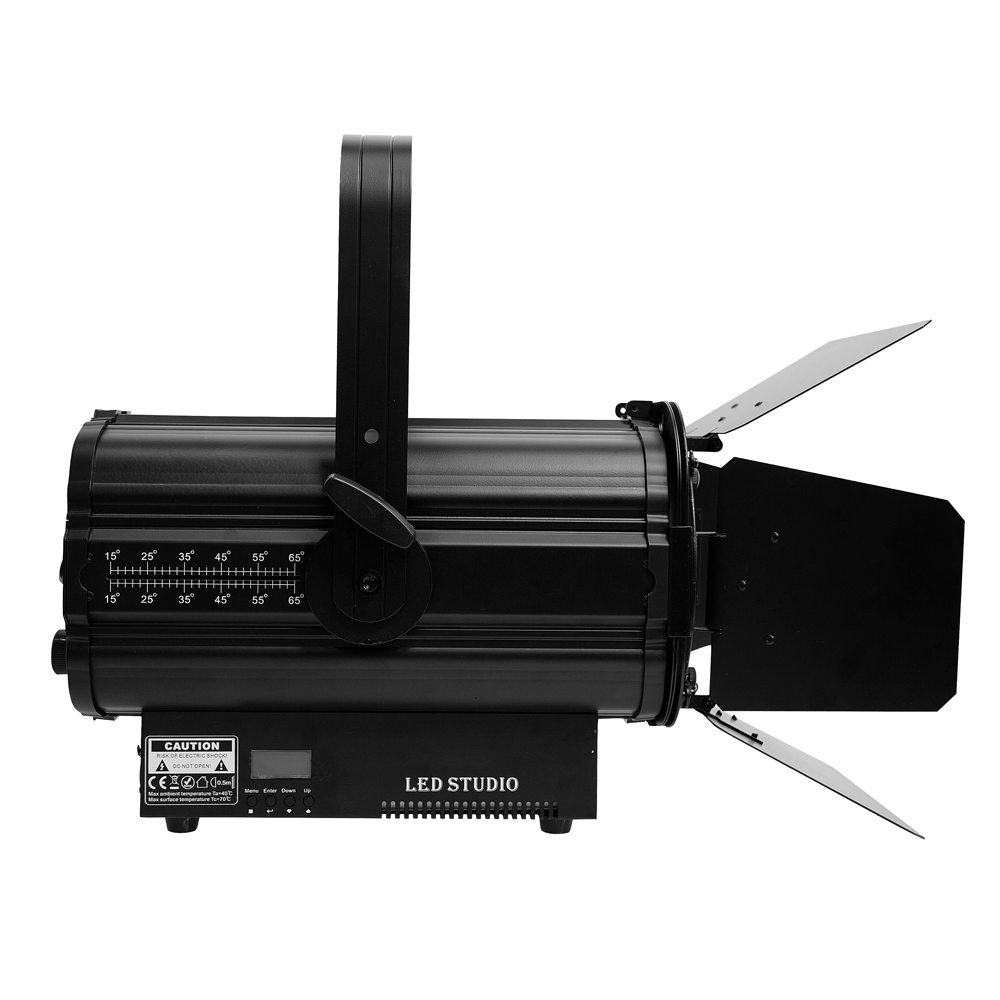

The ADL200Y-ZST-W LED ZOOM STUDIO 3000 K is a 200 watt Daylight White LED Spot with high CRI and silent operations, suitable for theatre and studio applications. It projects a bright, soft field of light within a 15 –65  DMX and manually adjustable zoom range. ADL200Y-ZST-W LED ZOOM STUDIO -model (Direct triac Dimming Technology) is compatible with a conventional dimming infrastructure. Its 5–100 % dimming function with smooth even dimming curve makes it a worthy halogen-LED replacement. A barndoor is optional for shaping the output manually.

Description

Light Source

Type: CITIZEN COB 200W
CRI/Ra/97 TLCI98
Power Source: 200W
Lifetime: 50,000h

Optical system

Beam angle: Fresnel LENS 15˚ -65˚

Control & programming

Control systems: DMX / RDM
Display: LCD / OLED display with 4 buttons
Protocol(s): DMX (USITT DMX512-A) / RDM (ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 2, 5
Control modes: 2
Dimmer curves: Inv. Square / linear / Square Law/ Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz
Color Calibration System: Solve the problem of LED color output inconsistent

Connections

Signal connection: XLR 3/5-Pin In/Out
Mains connection: powerCON TRUE1 In/Out

Electrical specifications

Power input: 100-240V AC 50/60Hz
Max power: 200W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP20
Fixture housing: Aluminum
Color: Black

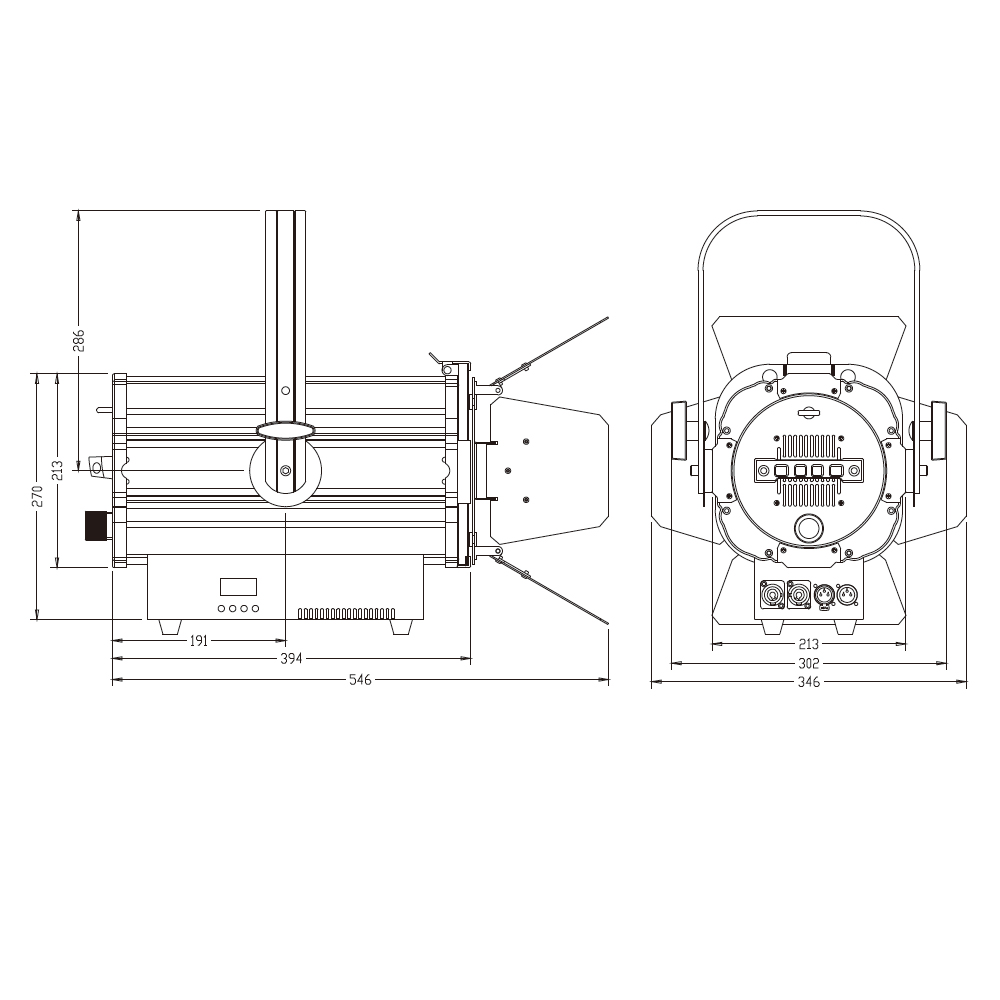

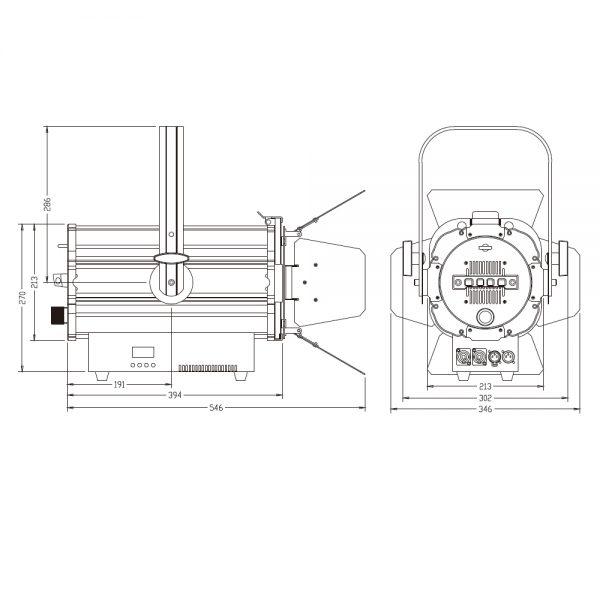

Dimensions and weight

Length: 557mm / 22ins
Width: 270mm / 10.63ins
Height: 302mm / 11.89ins
Weight: 10KG (22 lbs.)

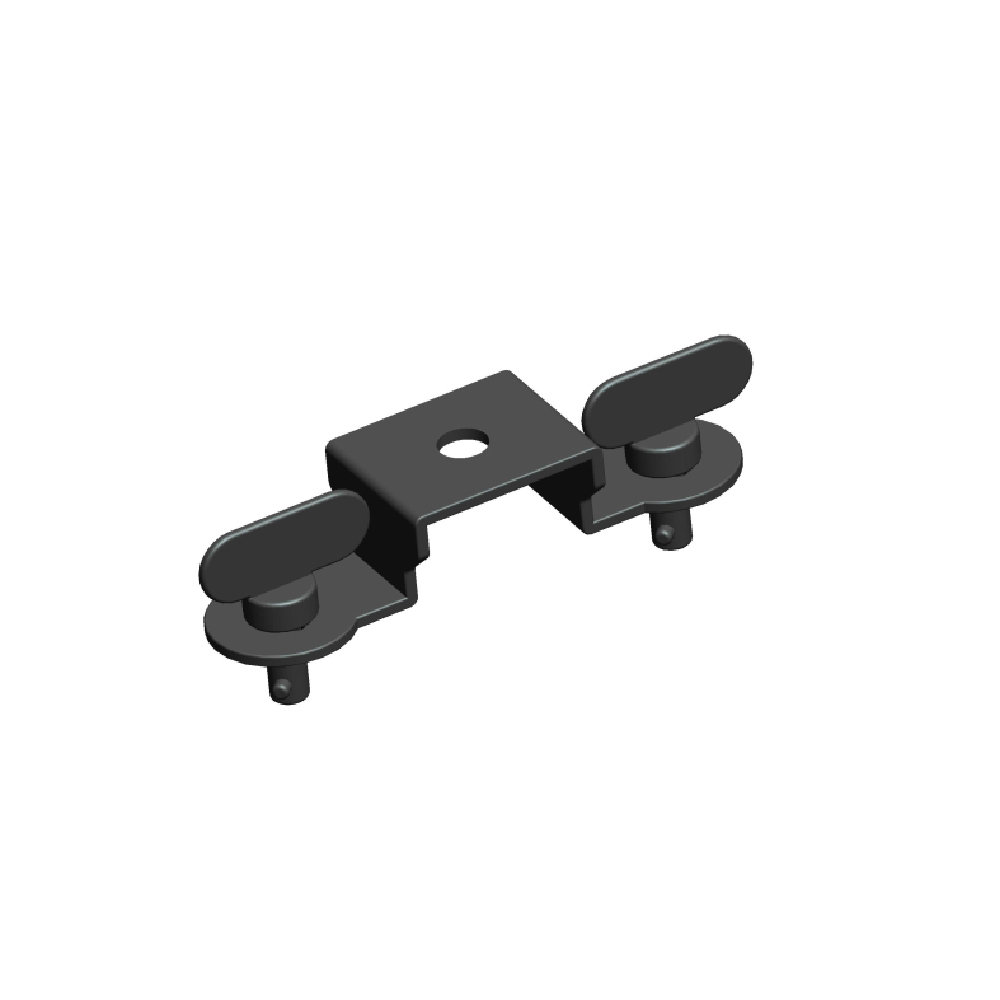

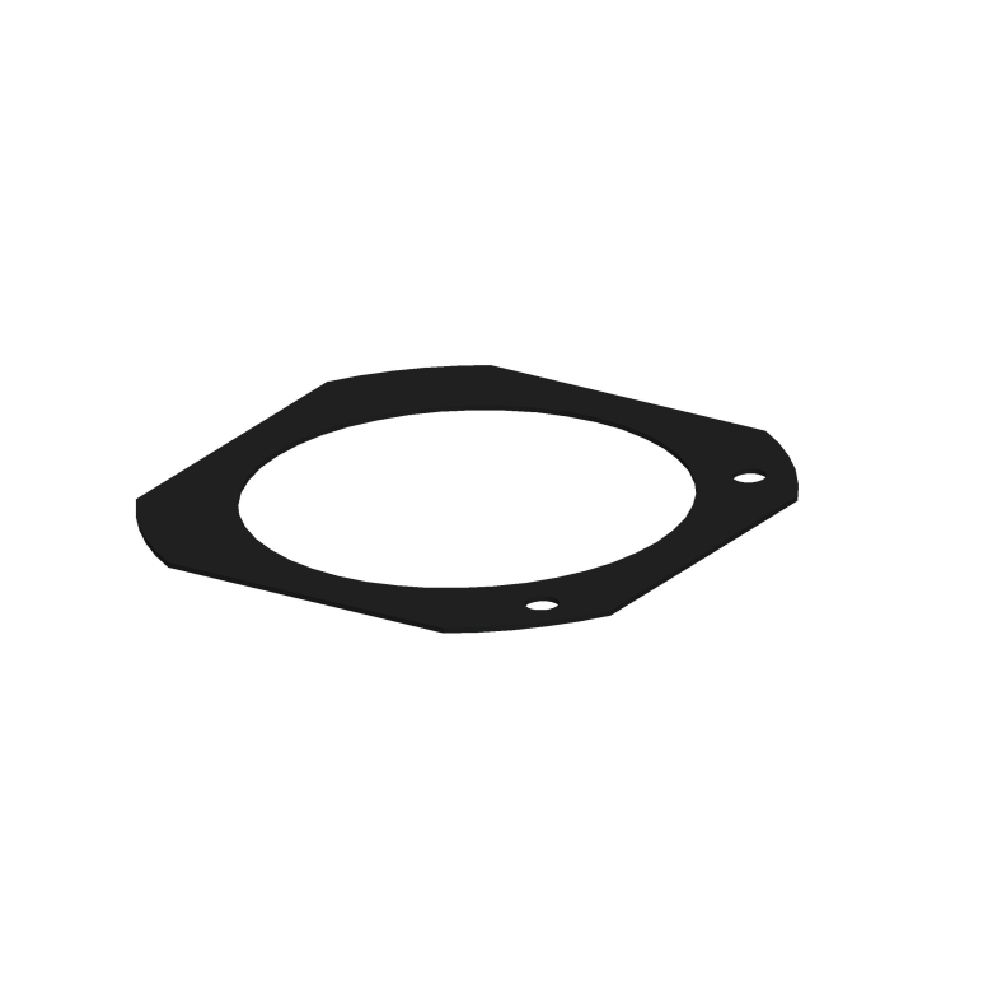

Accessories

  • ADL200Y-ZST-W
  • ADL200Y-ZST-W
  • ADL200Y-ZST-W
