ADL200 Zoom RGBW

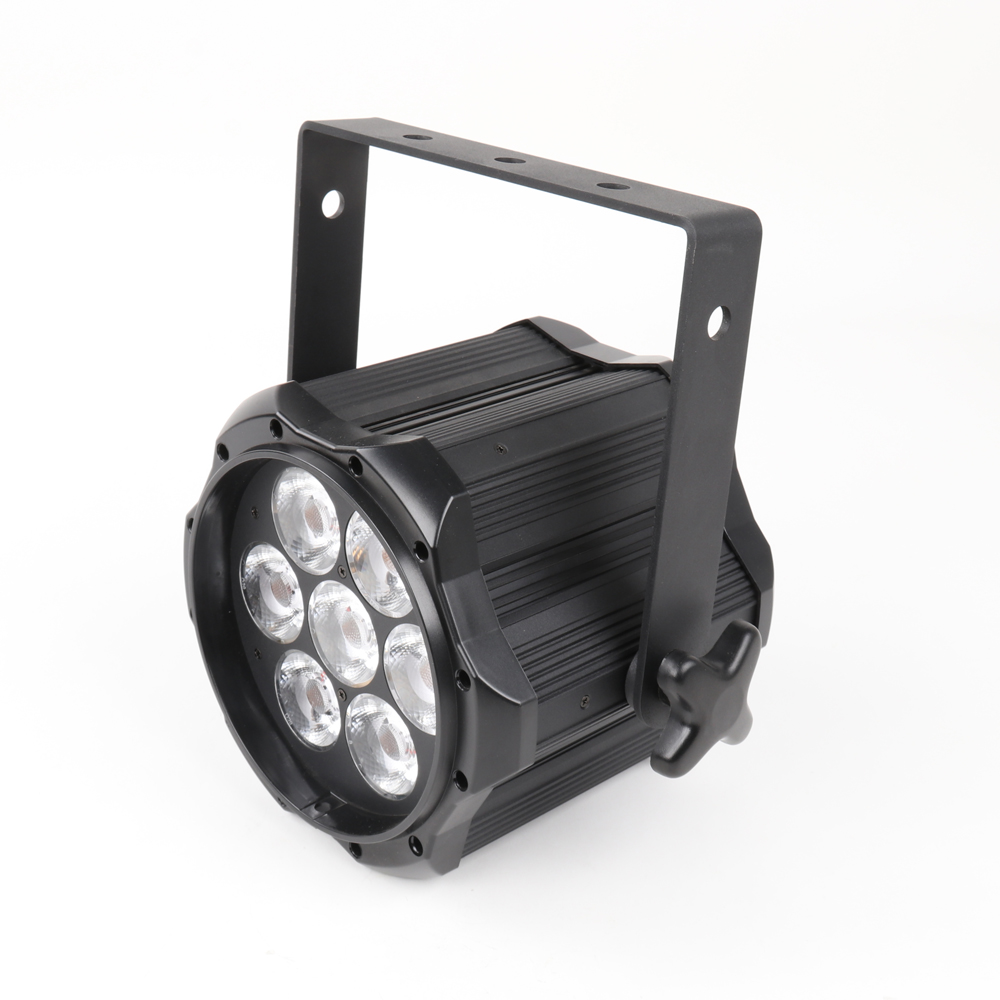

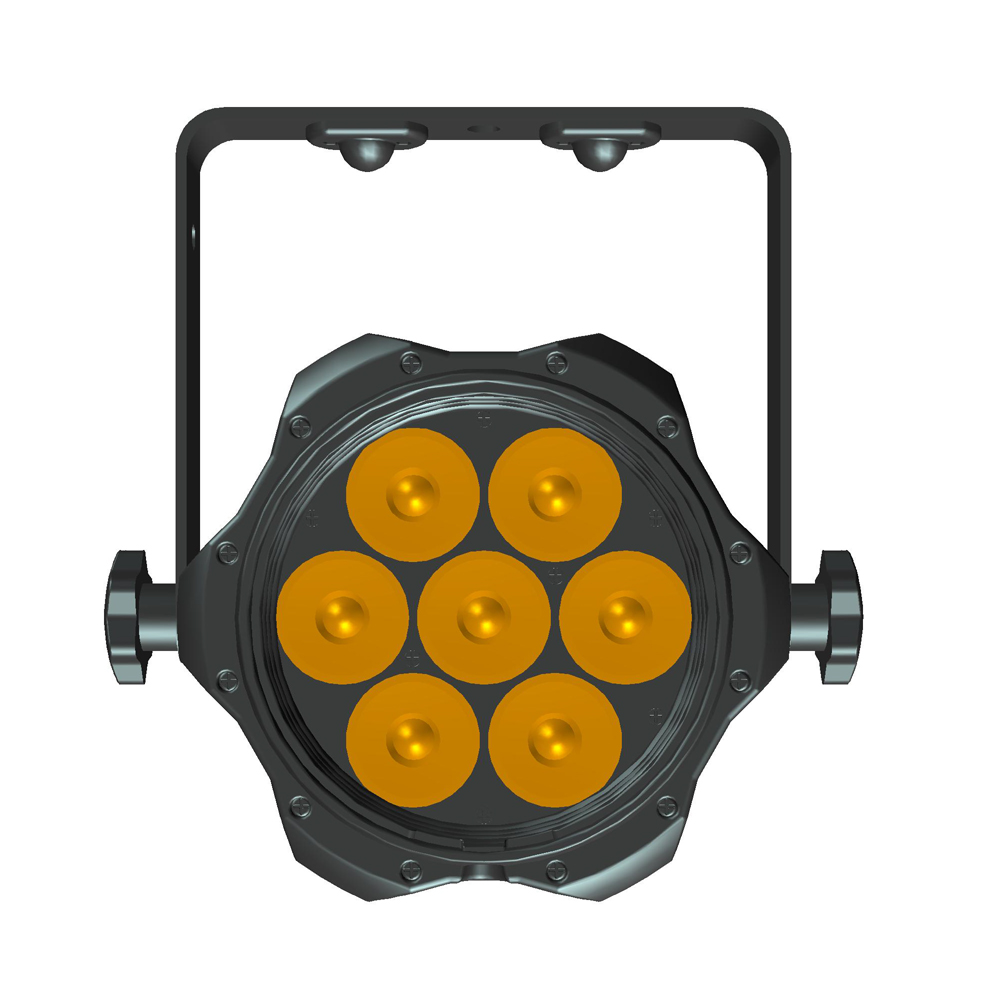

The ADL 200 ZOOM RGBW LED Spot is a 7x 30 watt RGBW OSRAM LED Spot with silent and flicker-free operations, suitable for indoor venues. CCT:1800K-10000K. Beam angle only 6˚-45˚. 0–100 % dimmer and strobe functions are controllable via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with many available built-in programs. An 1.2 m power cable is included.

Description

Light Source

Type: Osram LED 7x30W 4in1 RGBW
CCT: 1800K-10000K
Power Source: 200W
Lifetime: 50,000h

Optical system

Beam angle: 6˚ – 45˚

Control & programming

Control systems: DMX / RDM
Display: LCD / OLED display with 4 buttons
Protocol(s): DMX (USITT DMX512-A) / RDM (ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 2, 3, 4, 5, 6, 8
Control modes: 6
Dimmer curves: Inv. Square / linear / Square Law/ Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz
Color Calibration System: Solve the problem of LED color output inconsistent

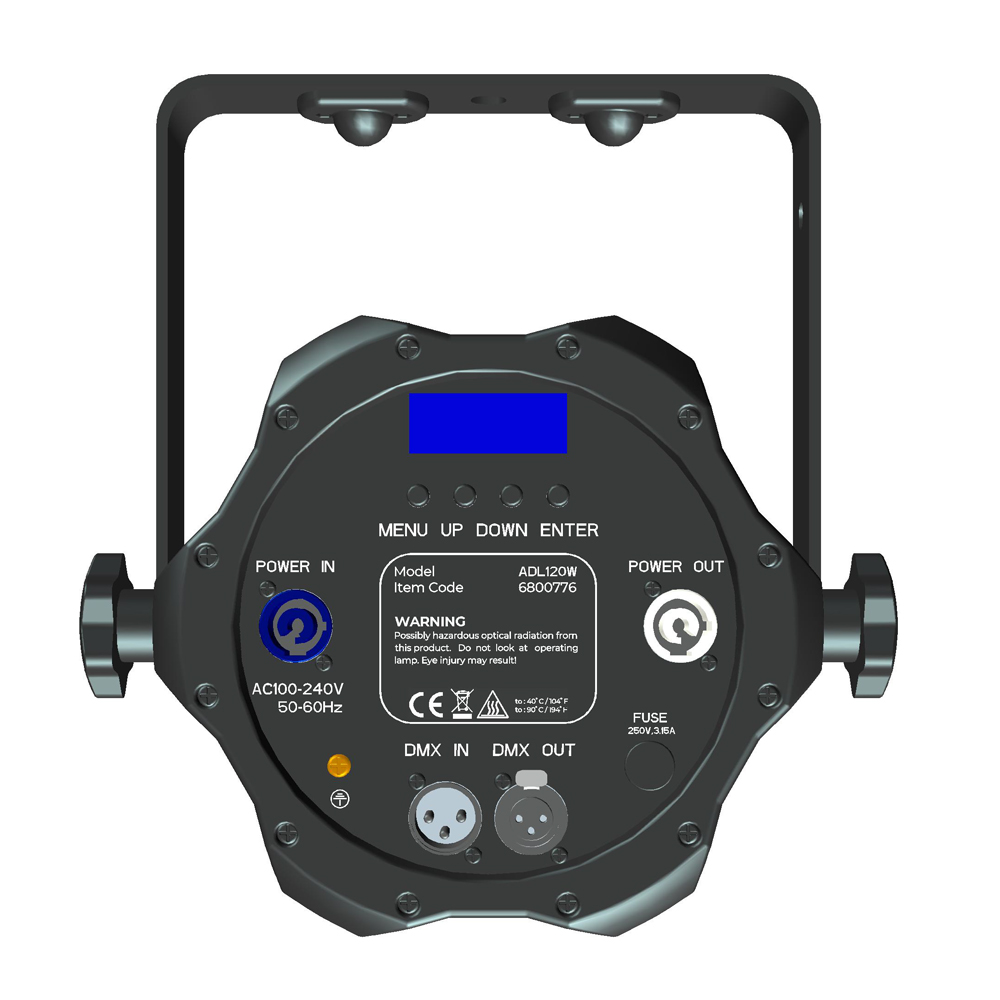

Connections

Signal connection: XLR 3/5-Pin In/Out
Mains connection: powerCON TRUE1 In/Out

Electrical specifications

Power input: 100-240V AC 50/60Hz
Max power: 200W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP20
Fixture housing: Aluminum
Color: Black

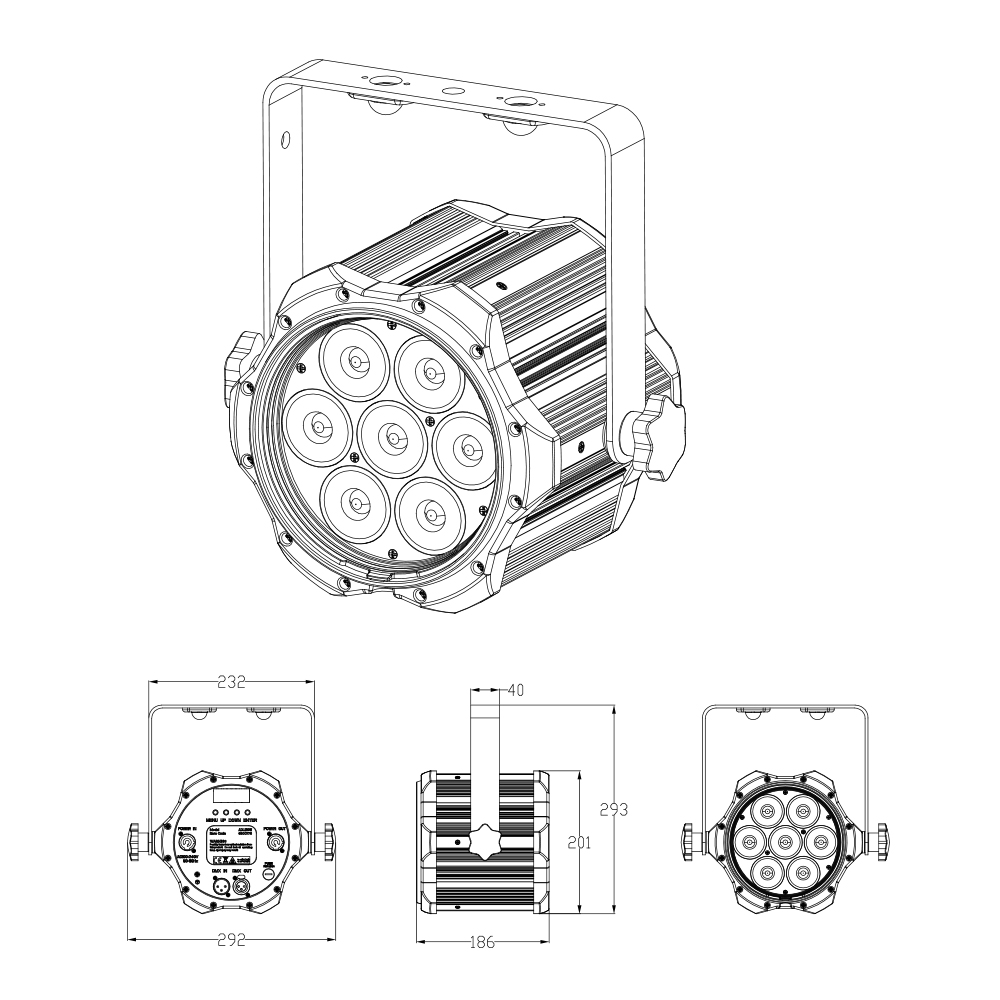

Dimensions and weight

Length: 300mm / 11.82 ins
Width: 200mm / 7.88ins
Height: 300mm / 11.82ins
Weight: 4.0KG (8.8 lbs.)

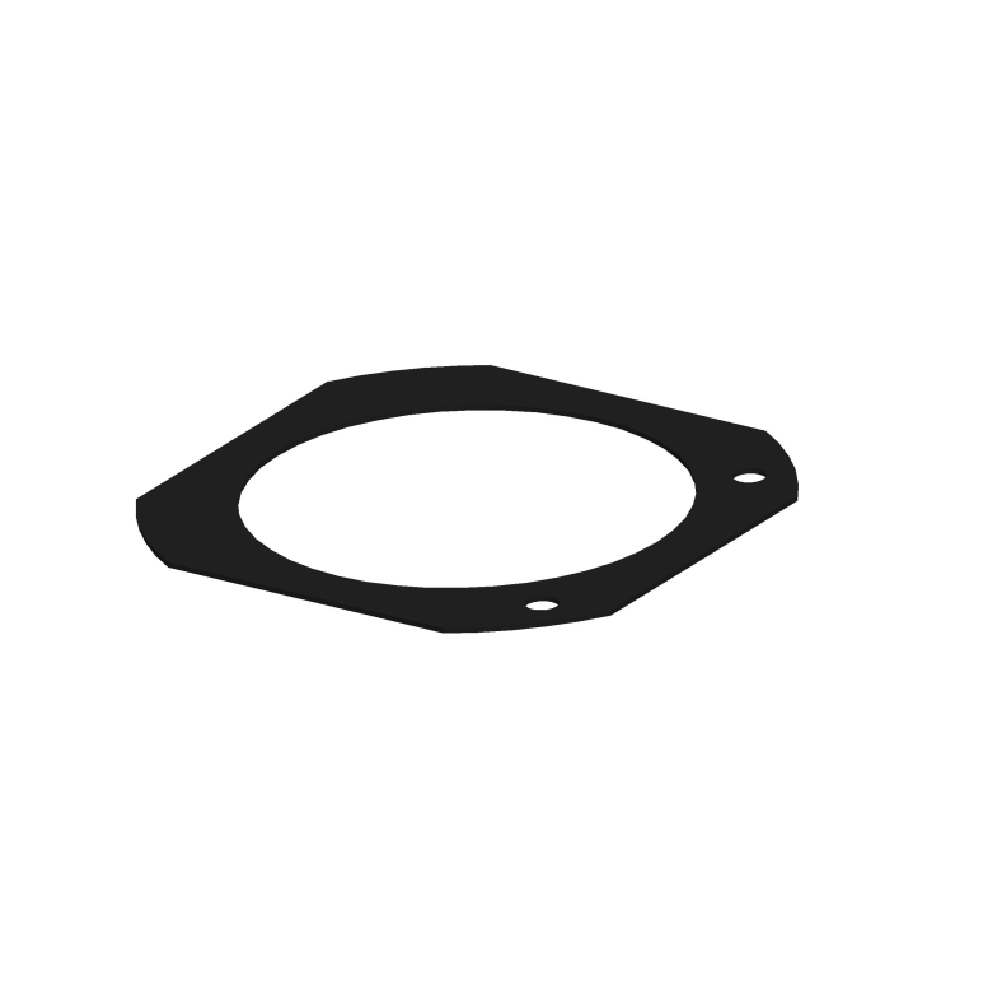

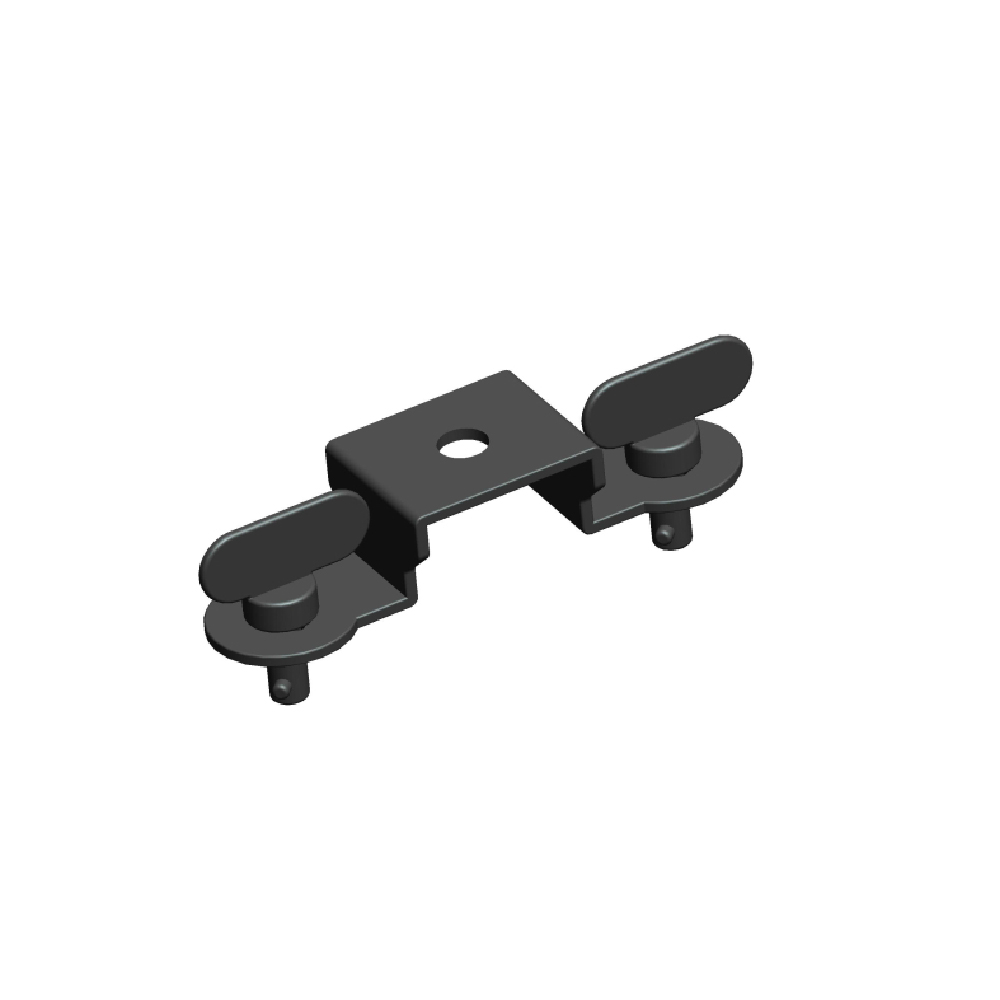

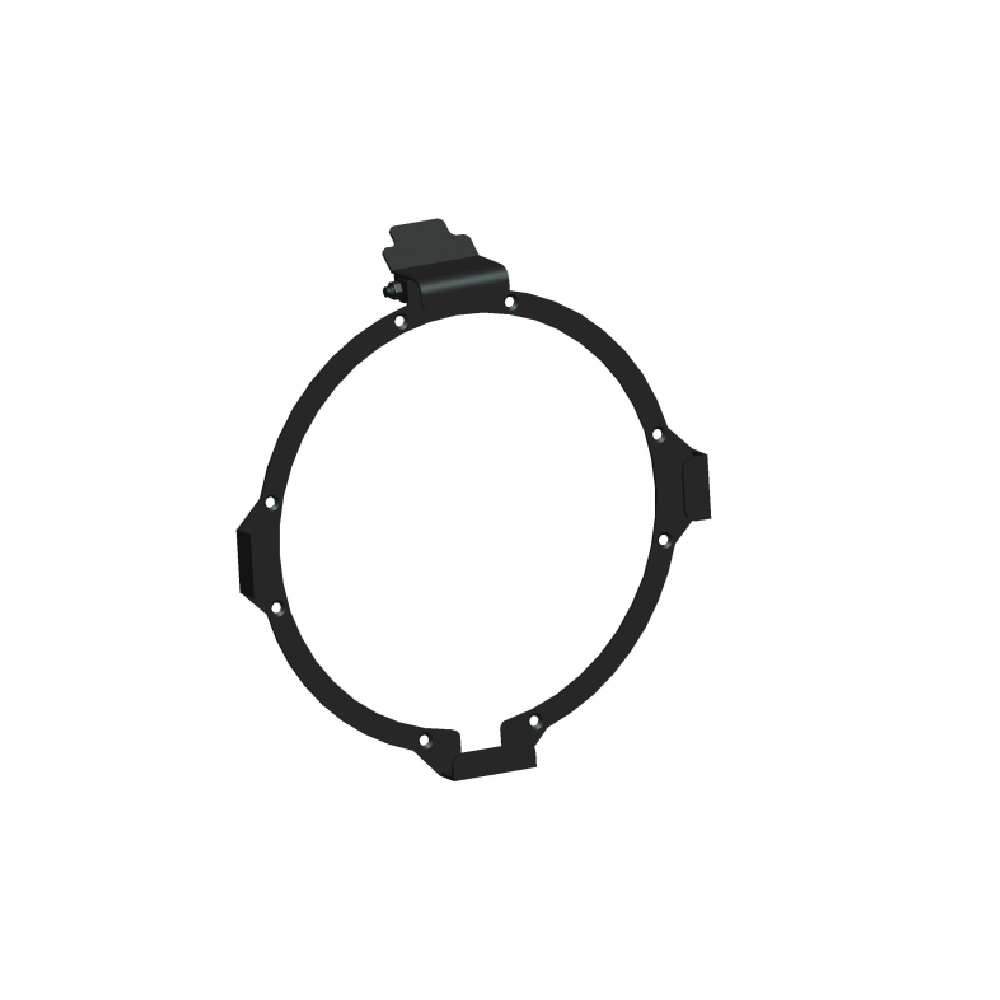

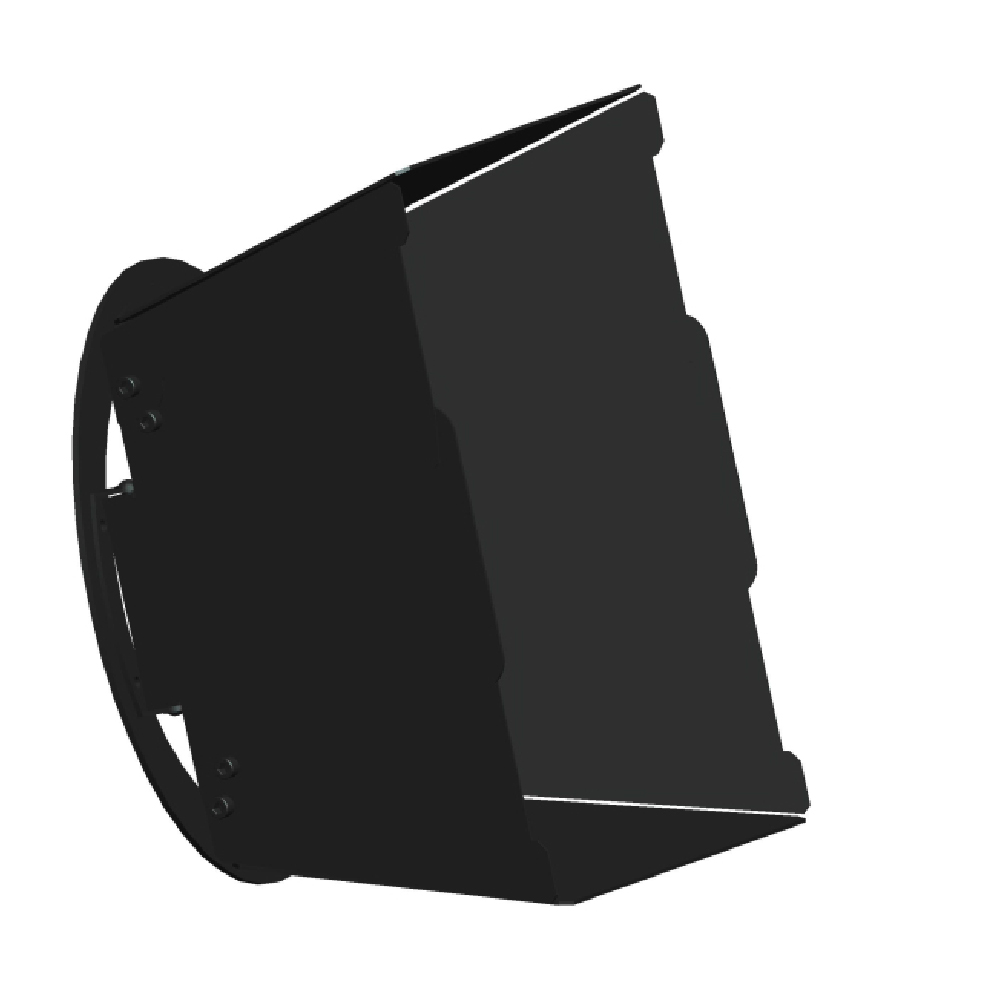

Accessories

  • ADL200 ZOOM RGBW
  • ADL200 ZOOM RGBW
  • ADL200 ZOOM RGBW
  • ADL200 ZOOM RGBW
