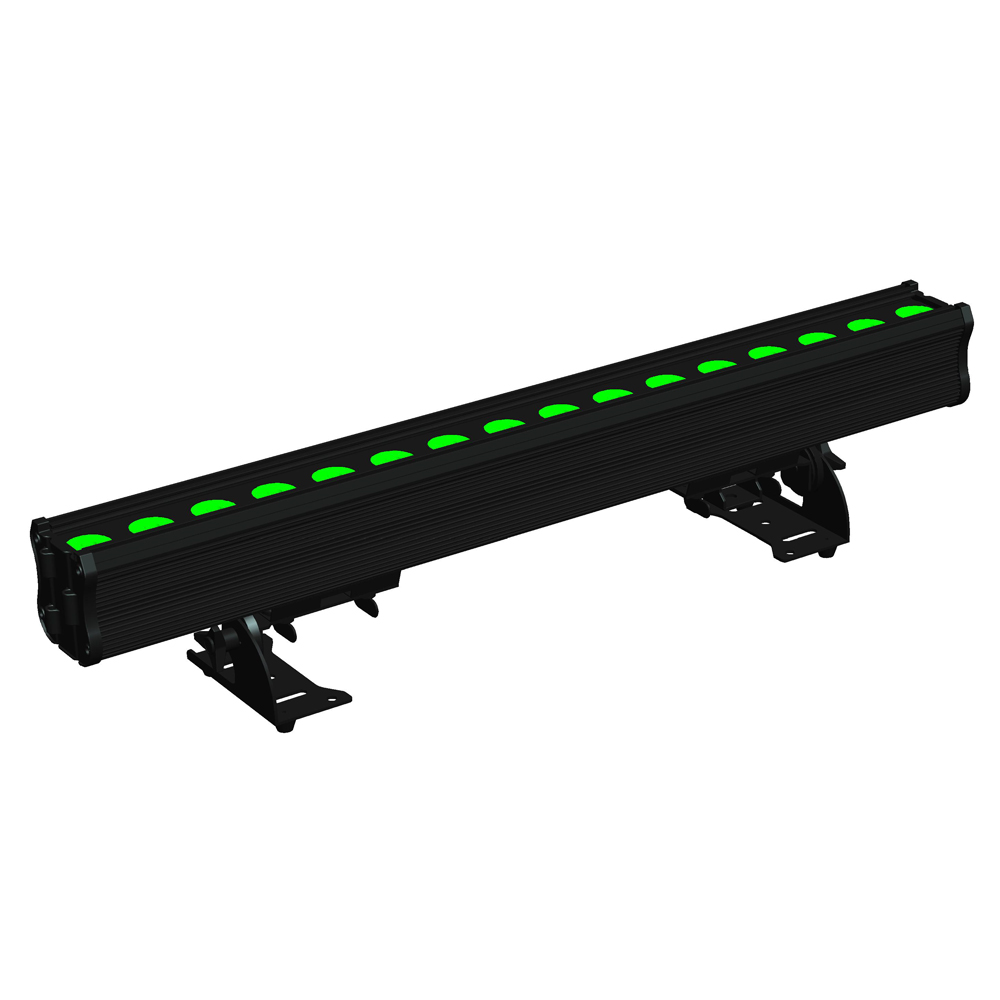

The ADL BAR is new design in linear lighting.

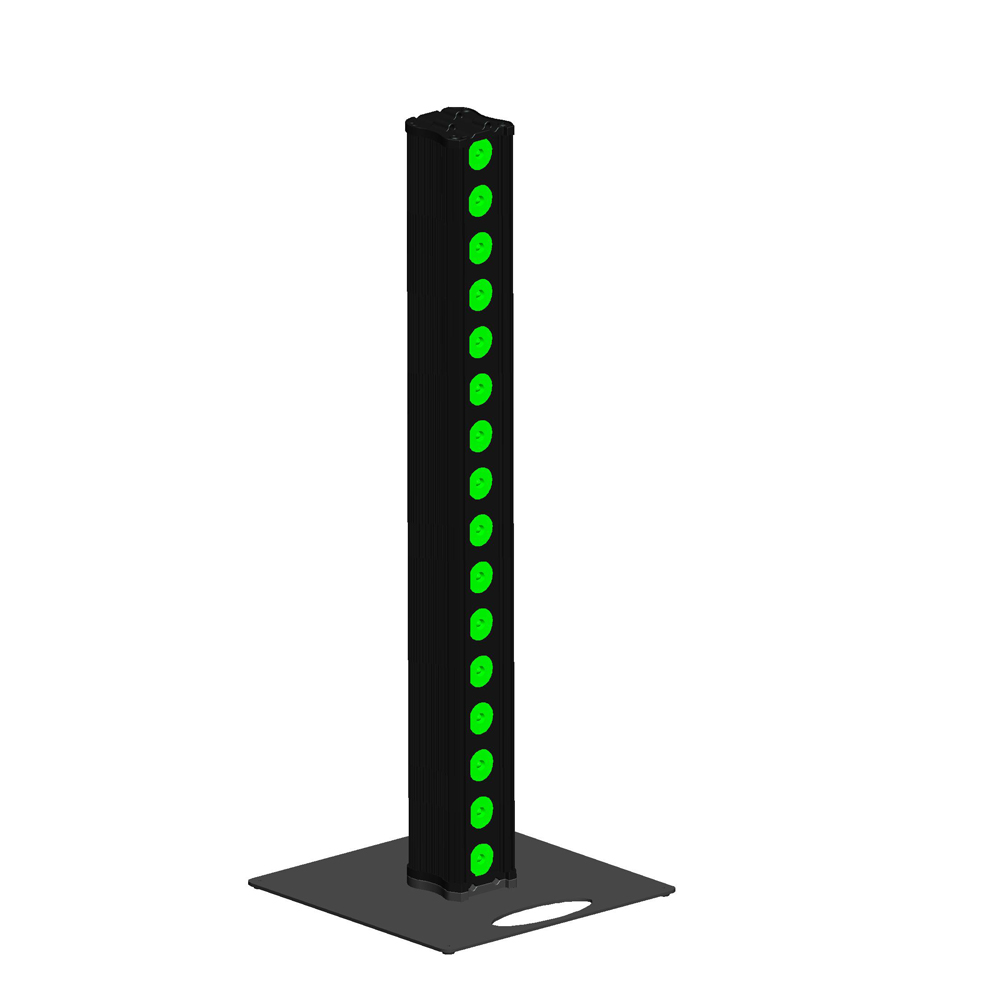

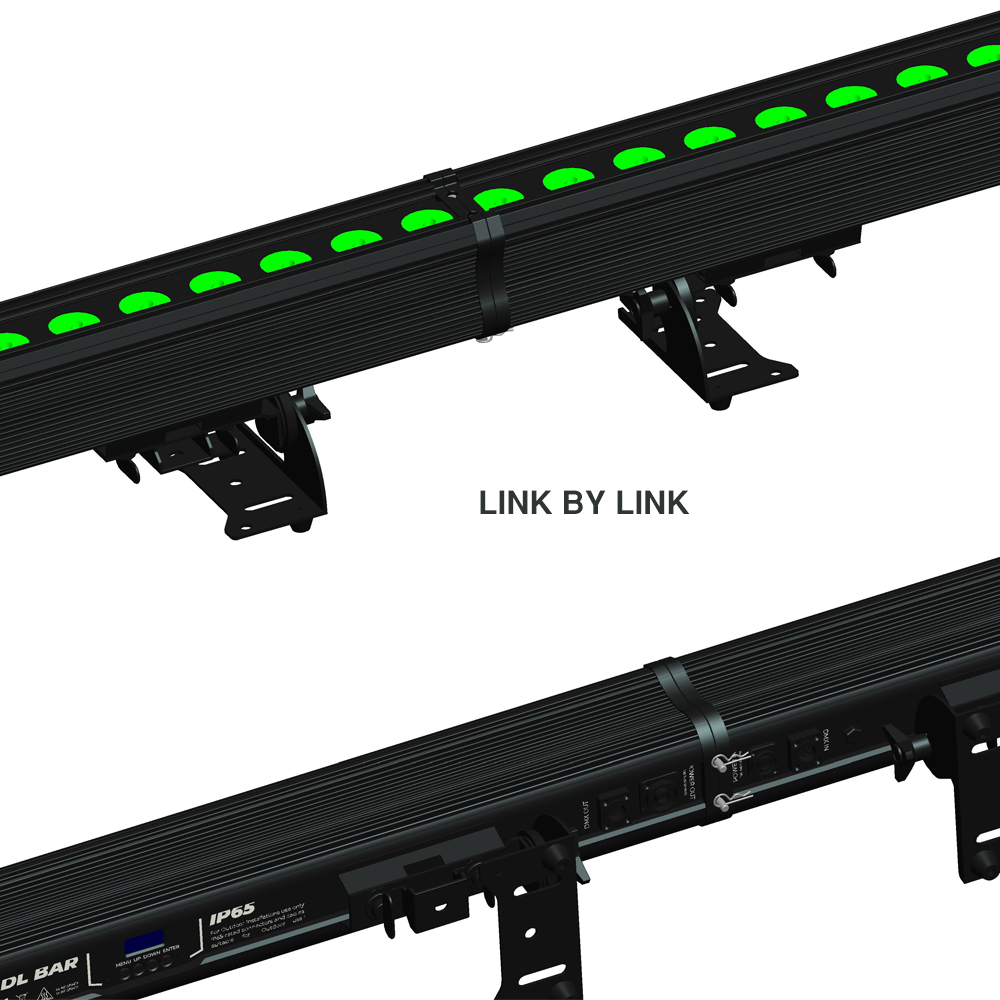

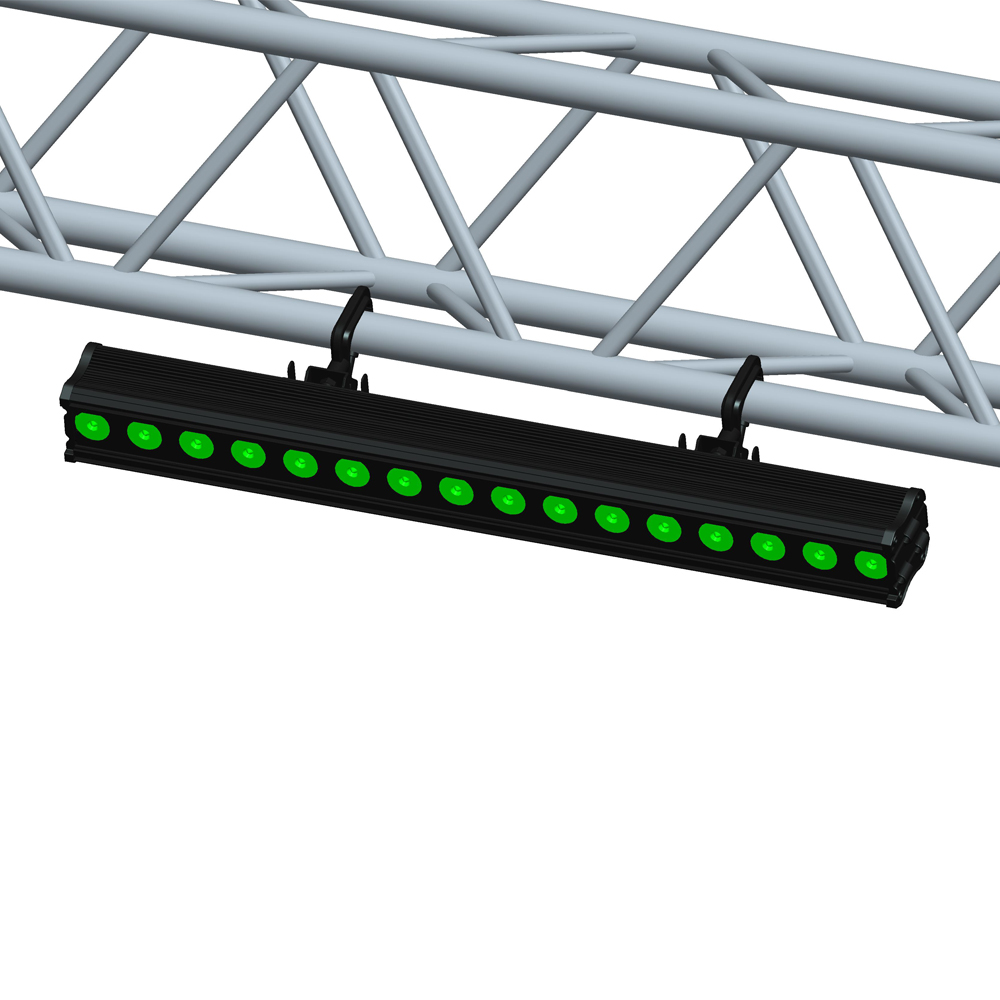

High power , it can link by link, horizontally or vertically,floor,hang.
The ADL BAR can be used to create seamless light lines – indoors and outdoors. Most so-called bars are too weak to produce a homogeneous surface light. With the ADL BAR it is no problem to change the beam angle between beam, flood or asymmetrical with its diffuser filters. Even when using these filters, the ADL BAR produces more than enough light output.
Today, light lines have become an important part of modern stage design. With the ADL BAR, a device is now available for such applications that also works completely without a fan. This feature makes the ADL BAR as flexible as it gets. Whether in a theater or at a concert – indoors and outdoors – the ADL BAR is the right choice.

Description

Light Source

Type: Osram LED 16x30W 4in1 RGBW
Power Source: 480W
Lifetime: 50,000h

Optical system

Beam angle: 6˚

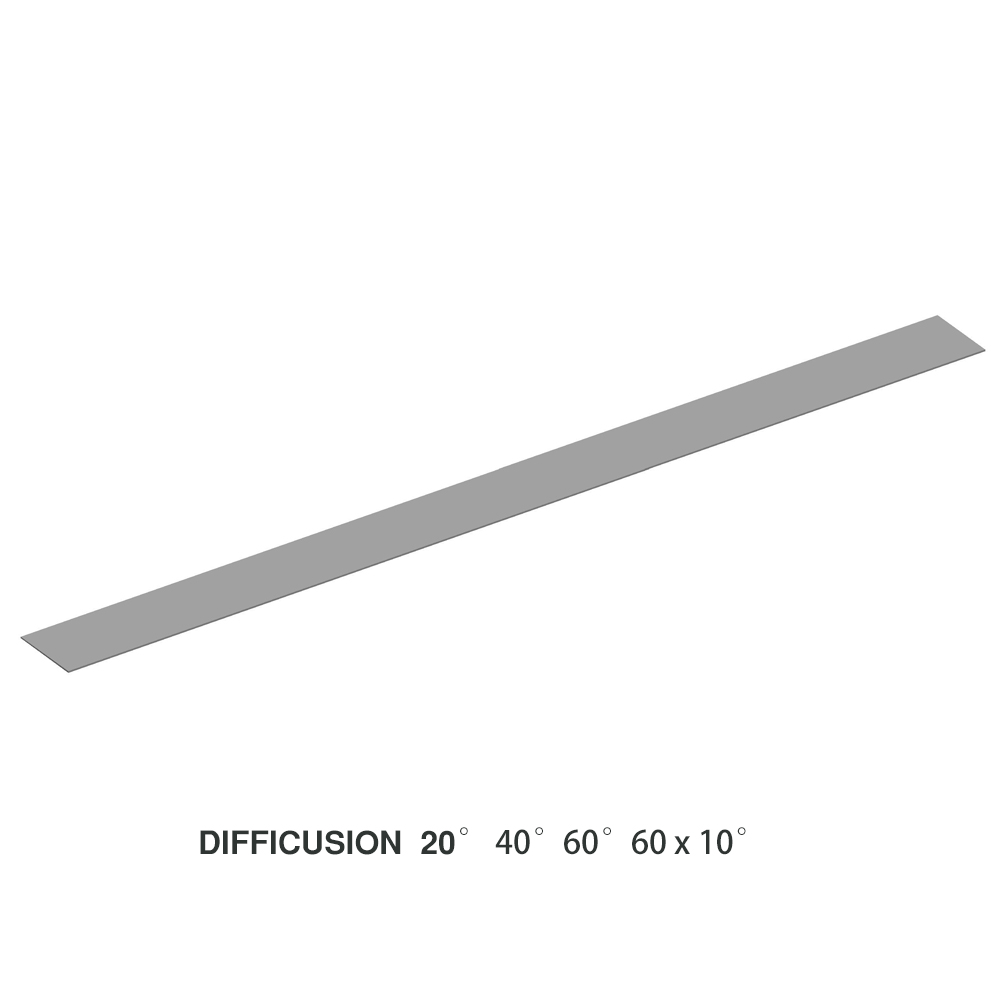

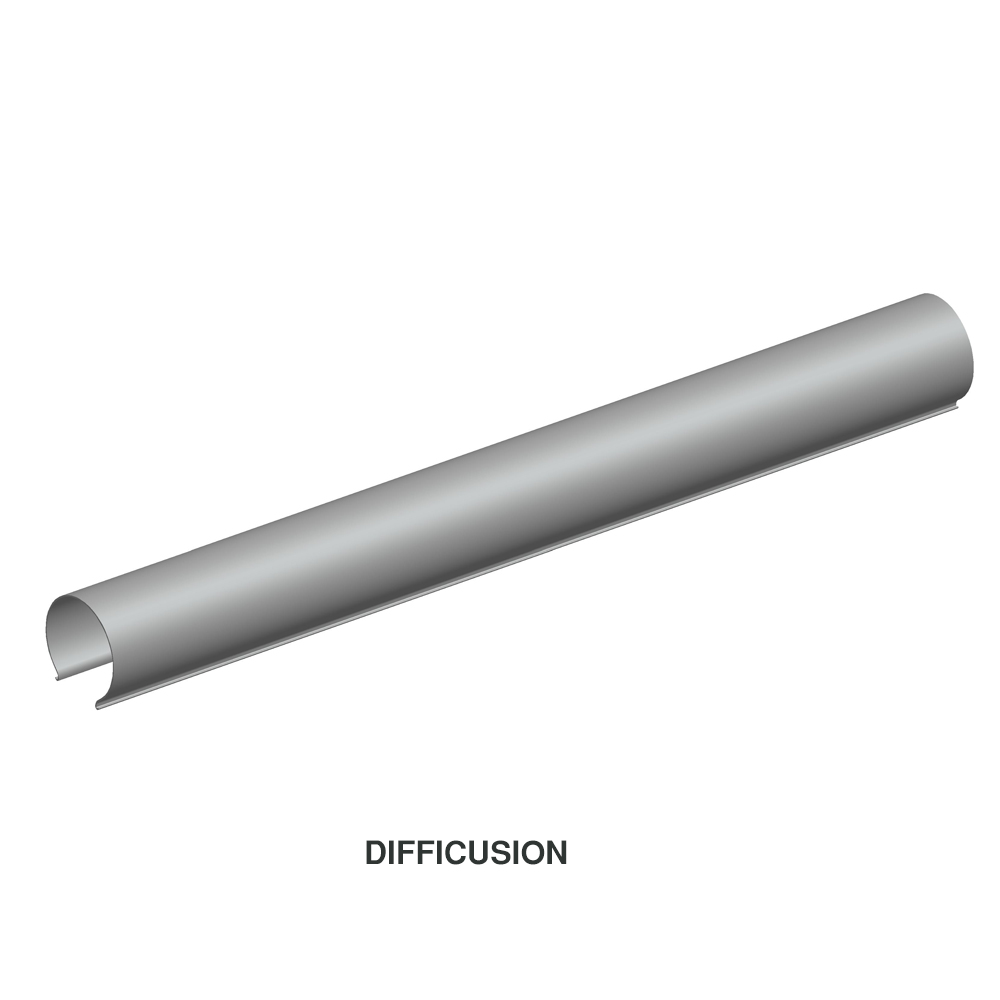

Accessories Diffusor Filter: 20˚, 40˚, 60˚, 60˚x10˚

Control & programming

Control systems: DMX / RDM / Wireless DMX / Manual setting
Display: OLED display with 4 buttons
Protocol(s): DMX (USITT DMX512-A) / RDM (ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 10, 65
Control modes: 2
Dimmer curves: Inv. Square / linear / Square Law/ Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz

Connections

Signal connection: XLR 5-Pin In/Out
Mains connection: powerCON TRUE1 In/Out

Electrical specifications

Power input: 100-240V AC 50/60Hz
Max power: 480W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP65
Fixture housing: Extruded aluminum
Color: Black

Dimensions and weight

Length: 1022mm / 40.23 ins
Width: 110mm / 4.33ins
Height: 214mm / 8.43ins
Weight: 15KG (33 lbs.)

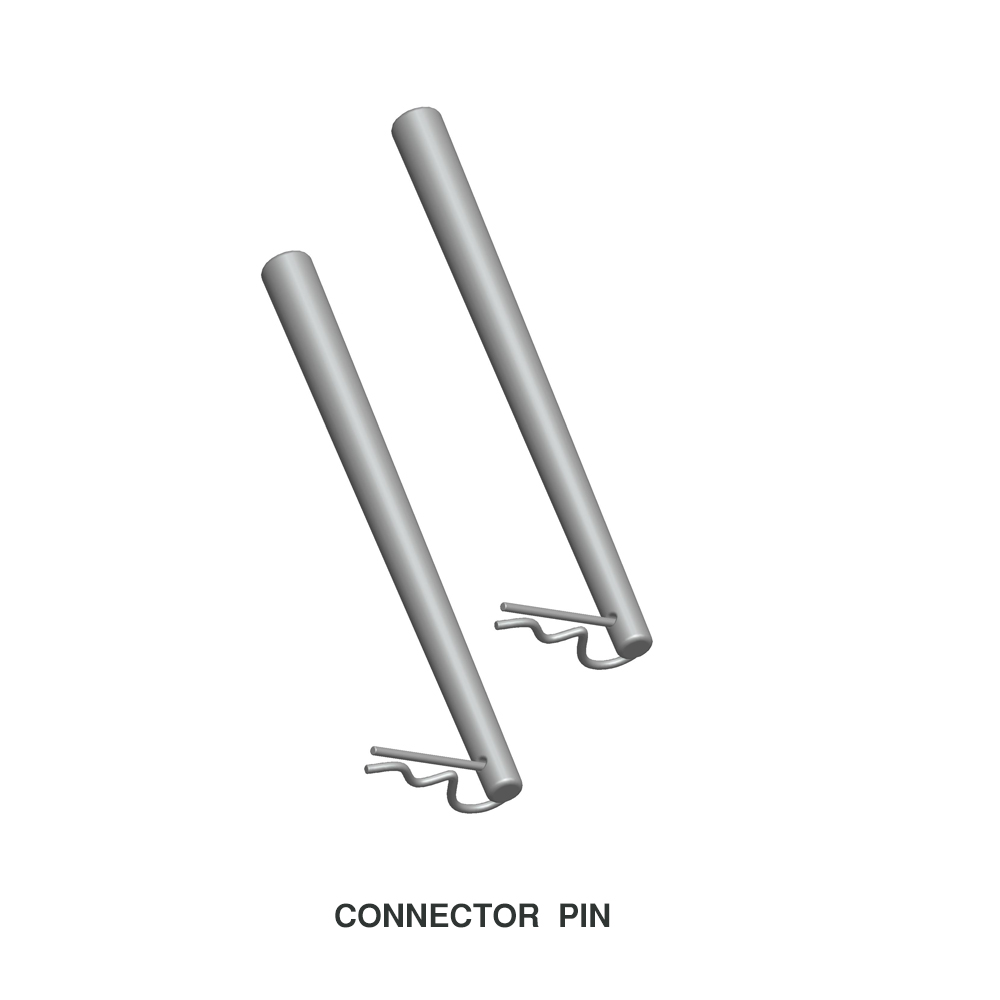

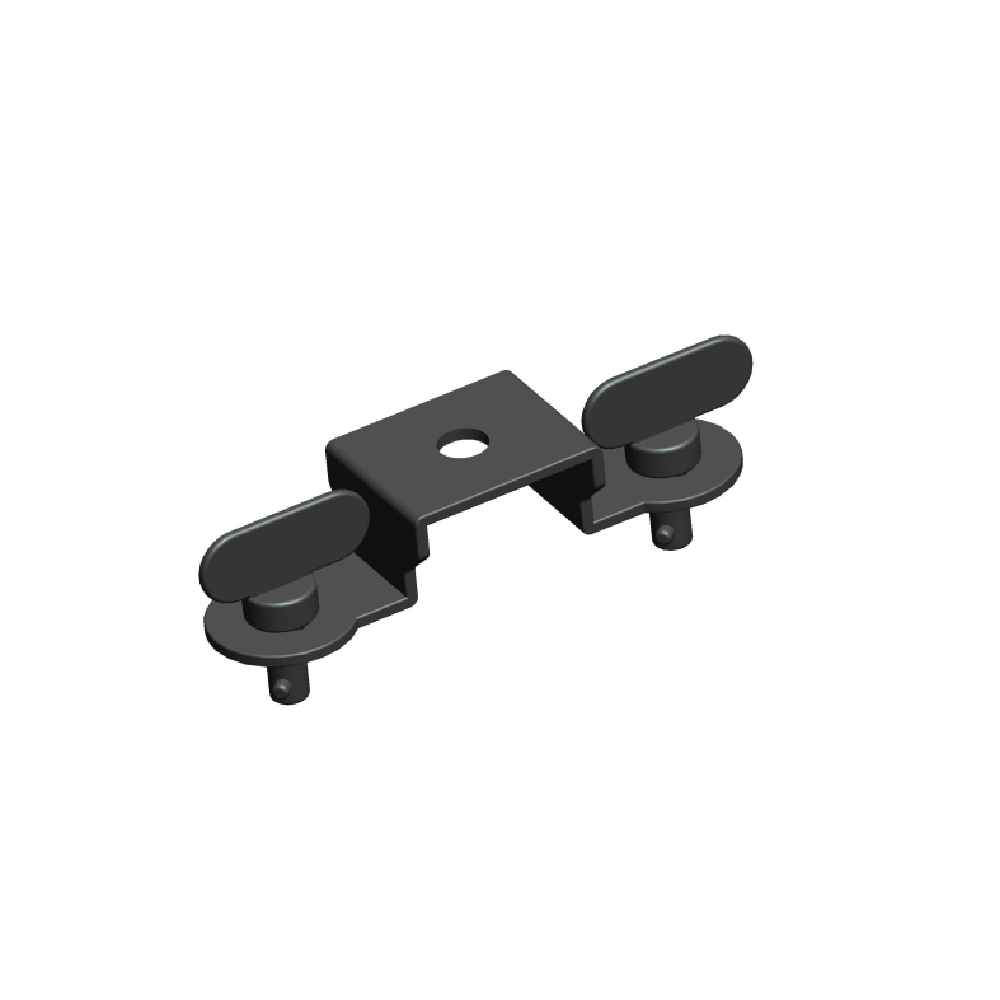

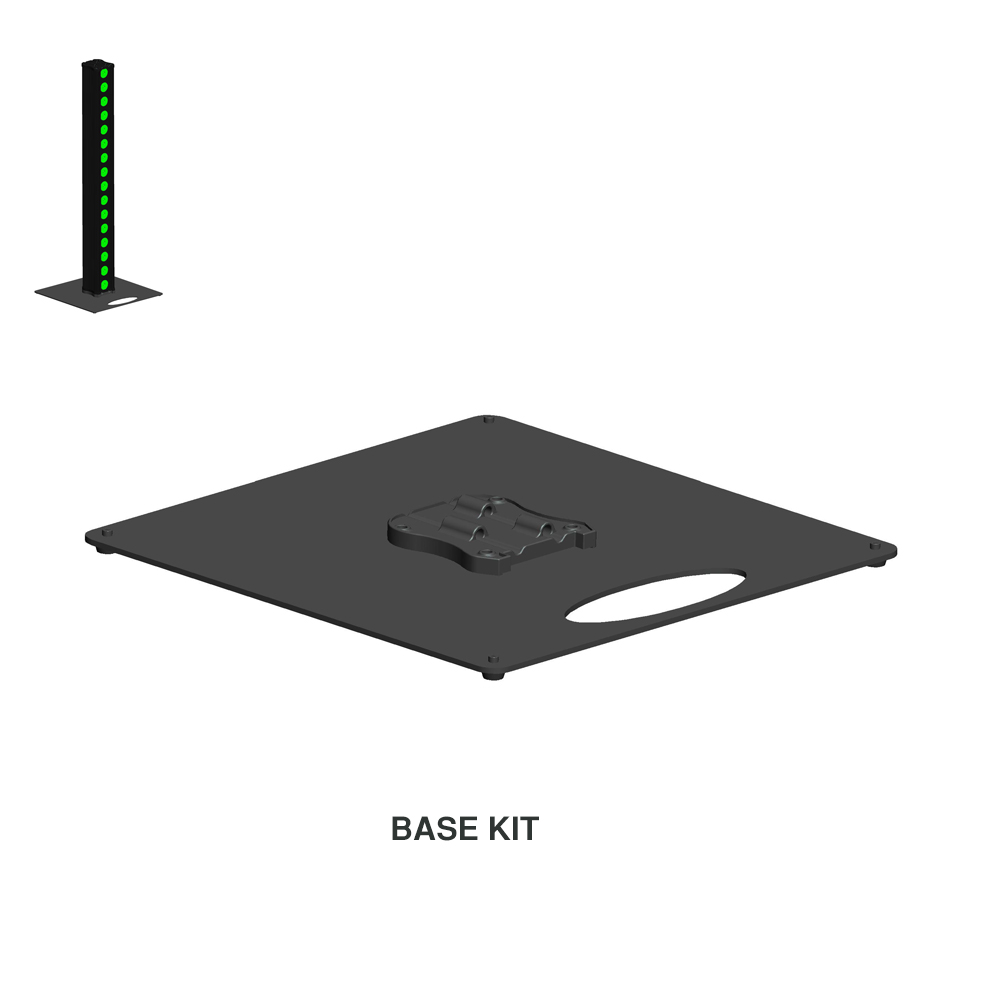

Accessories

  • ADL BAR 480 RGBW
  • ADL BAR 480 RGBW
  • ADL BAR 480 RGBW
  • ADL BAR 480 RGBW
  • ADL BAR 480 RGBW
  • ADL BAR 480 RGBW
