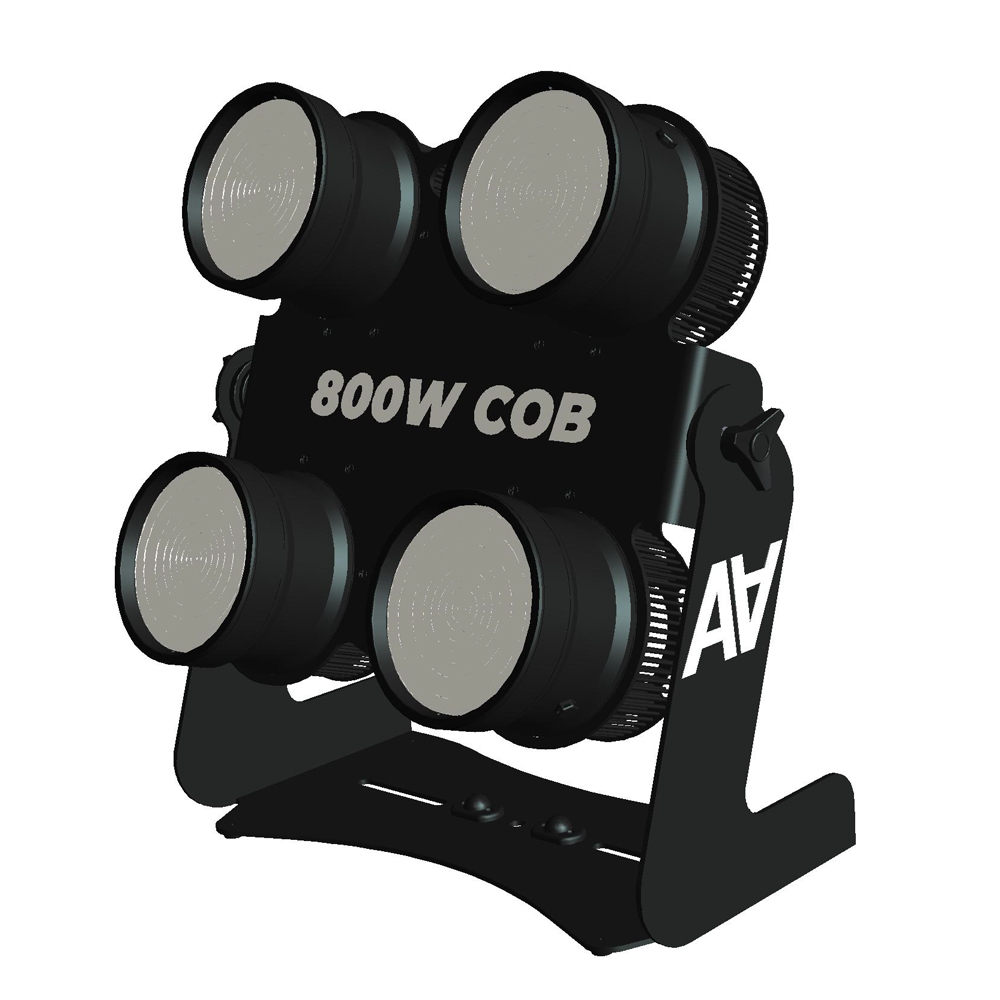

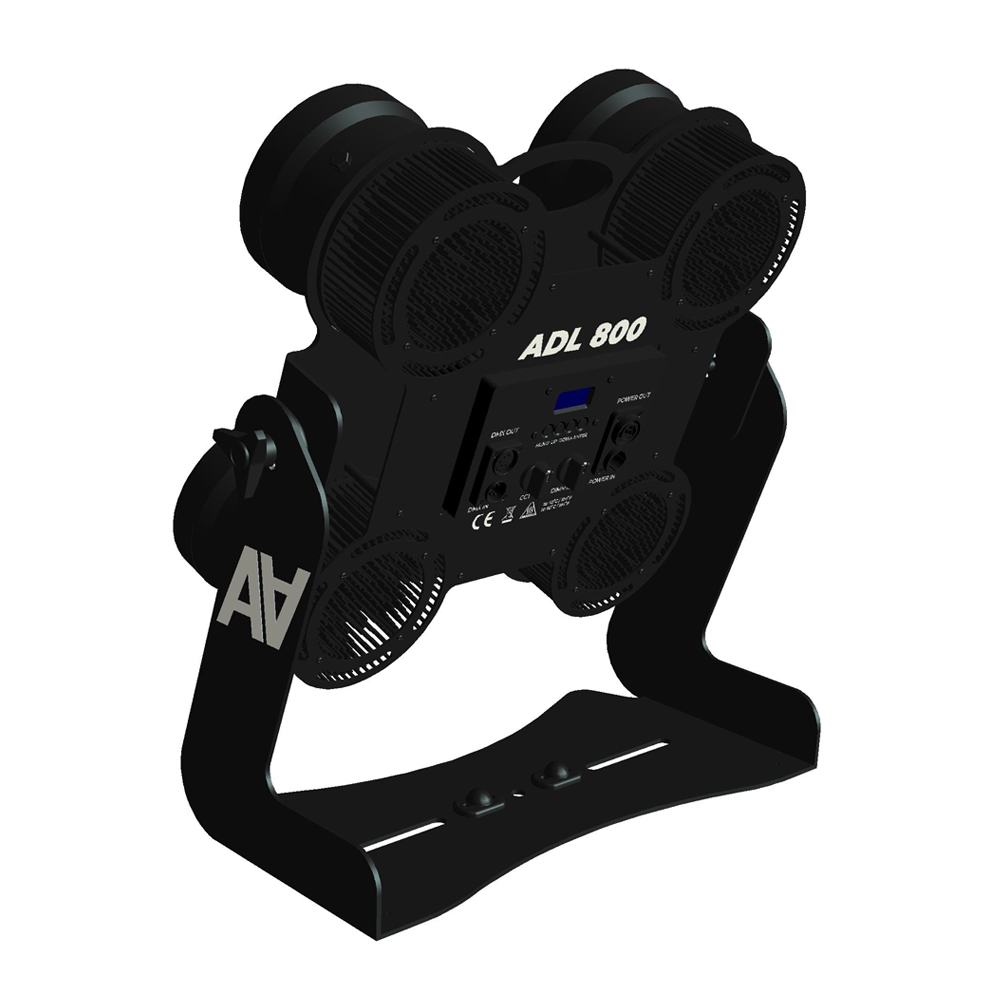

ADL 800B-W is a tunable white blinder light with an adjustable color temperature range from 2,700 to 6,500 Kelvin. it is the ideal general light for trade fairs, events, sports or show areas or in all sound-sensitive areas. The ADL 800B-W is classified according to IP65, and without fan ,so it is dustproof and also suitable for outdoor use.
Particularly noteworthy are the direct selector switches for color temperature and brightness, Selectable PWM frequencies (up to 30 KHz) are available for use in the video/TV sector.

Description

Light Source

Type: 4x 200W COB LEDs
CRI(Ra): 97+ TLCI97
Power Source: 800W
Lifetime: 50,000h

Optical system

Beam angle: 10˚, 45˚, 60˚ or 90˚
The lenses can changed easily, quickly and without any tools

Control & programming

Control systems: DMX / RDM / Manual setting / Rotary Switches
Display: OLED display with 4 buttons
Protocol(s): DMX (USITT DMX512-A) / RDM (ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 2/5
Control modes: 2
Dimmer curves: Inv. Square / linear / Square Law/ Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz

Connections

Signal connection: XLR 5-Pin In/Out
Mains connection: powerCON TRUE1 In/Out

Electrical specifications

Power input: 100-240V AC 50/60Hz
Max power: 800W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP65
Fixture housing: Aluminum
Color: Black

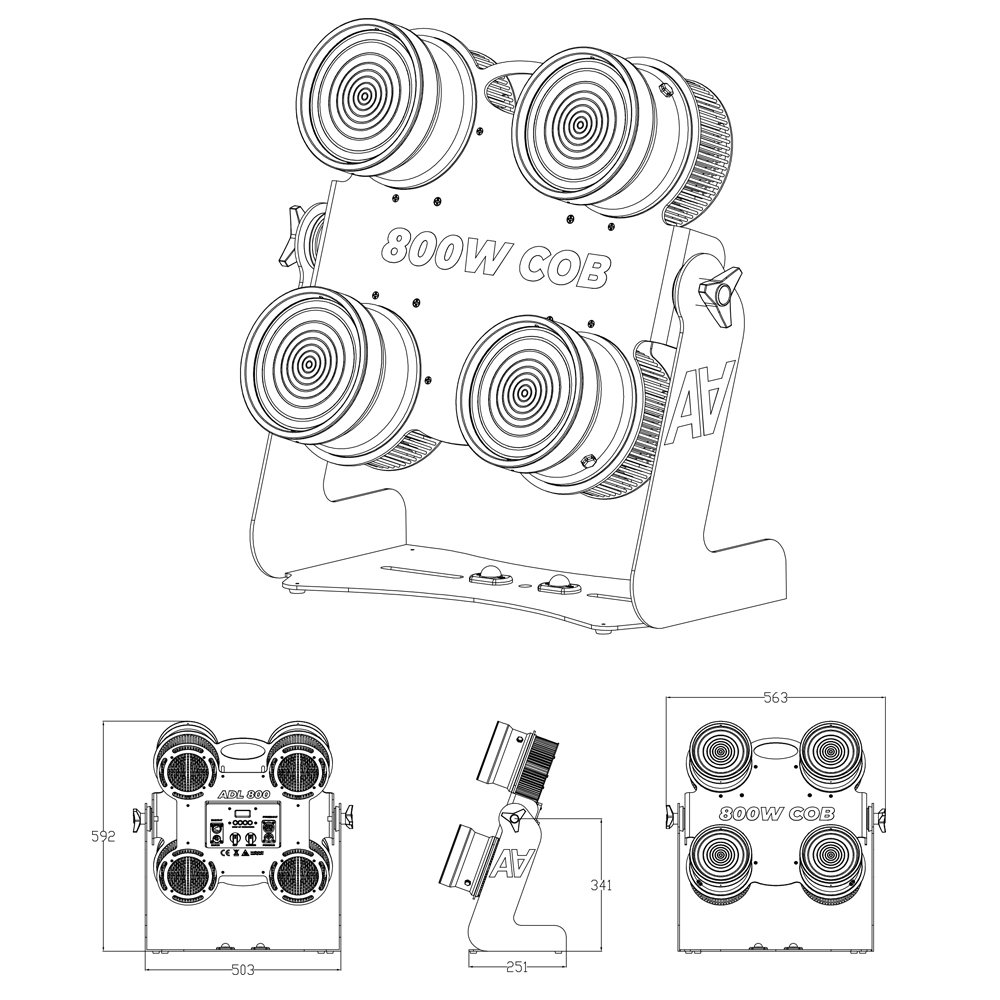

Dimensions and weight

Length: 592mm / 23.31 ins
Width: 563mm / 22.17 ins
Height: 300mm / 11.82 ins
Weight: 18KG (36 lbs.)

Accessories

  • ADL400B-W
