ADL 500 MOVING HEAD ZOOM + STROBE
ADL 500 MOVING HEAD ZOOM + STROBE
ADL 500 MOVING HEAD ZOOM + STROBE

ADL 500 MOVING HEAD ZOOM + STROBE

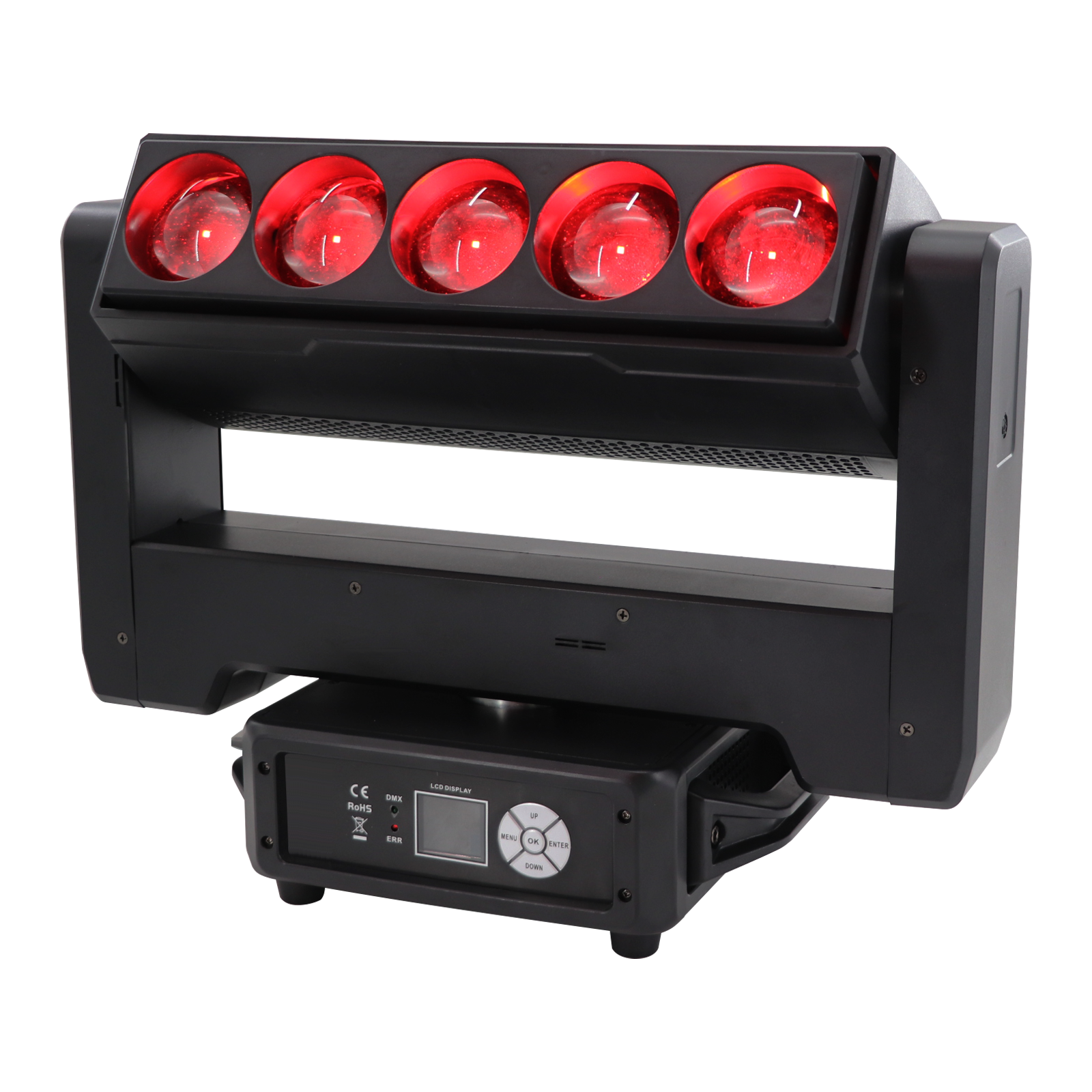

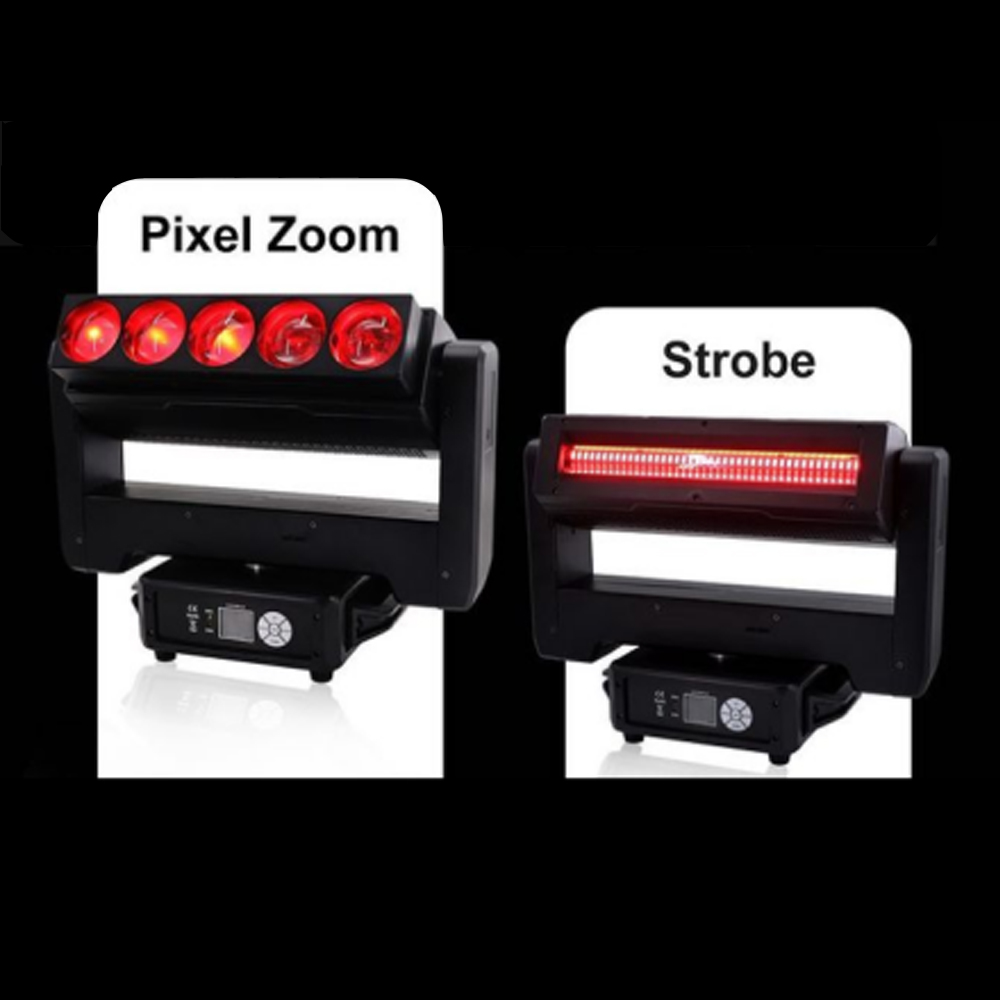

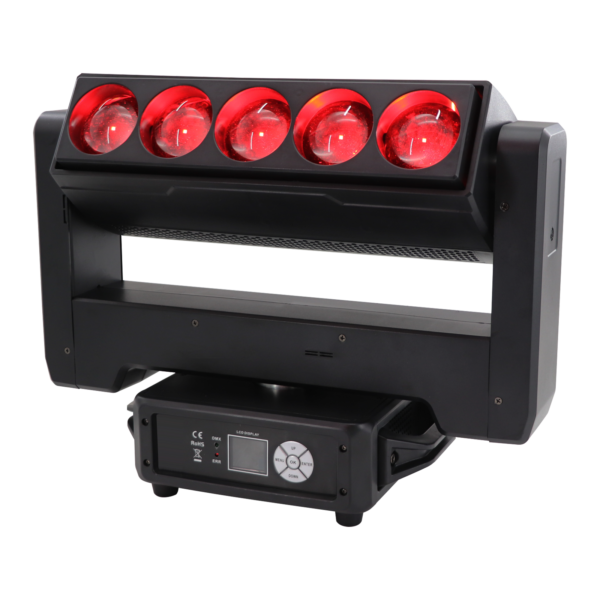

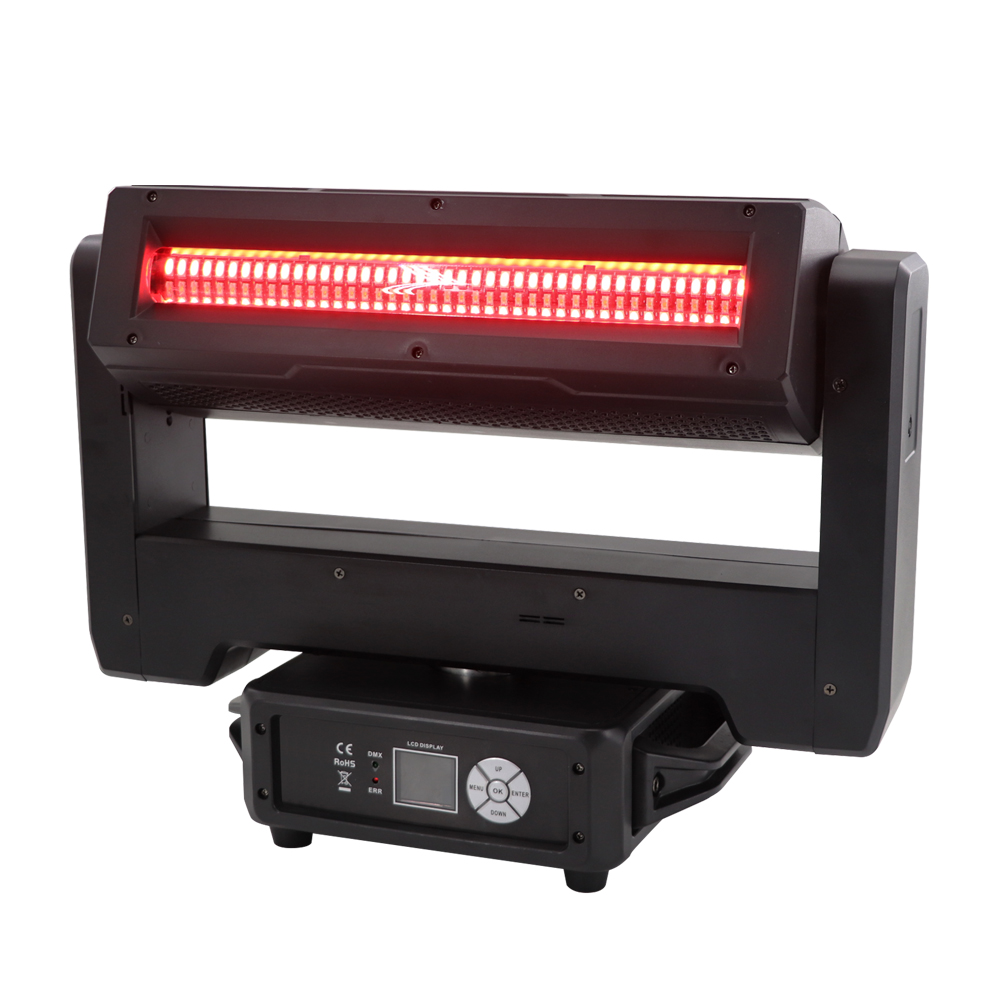

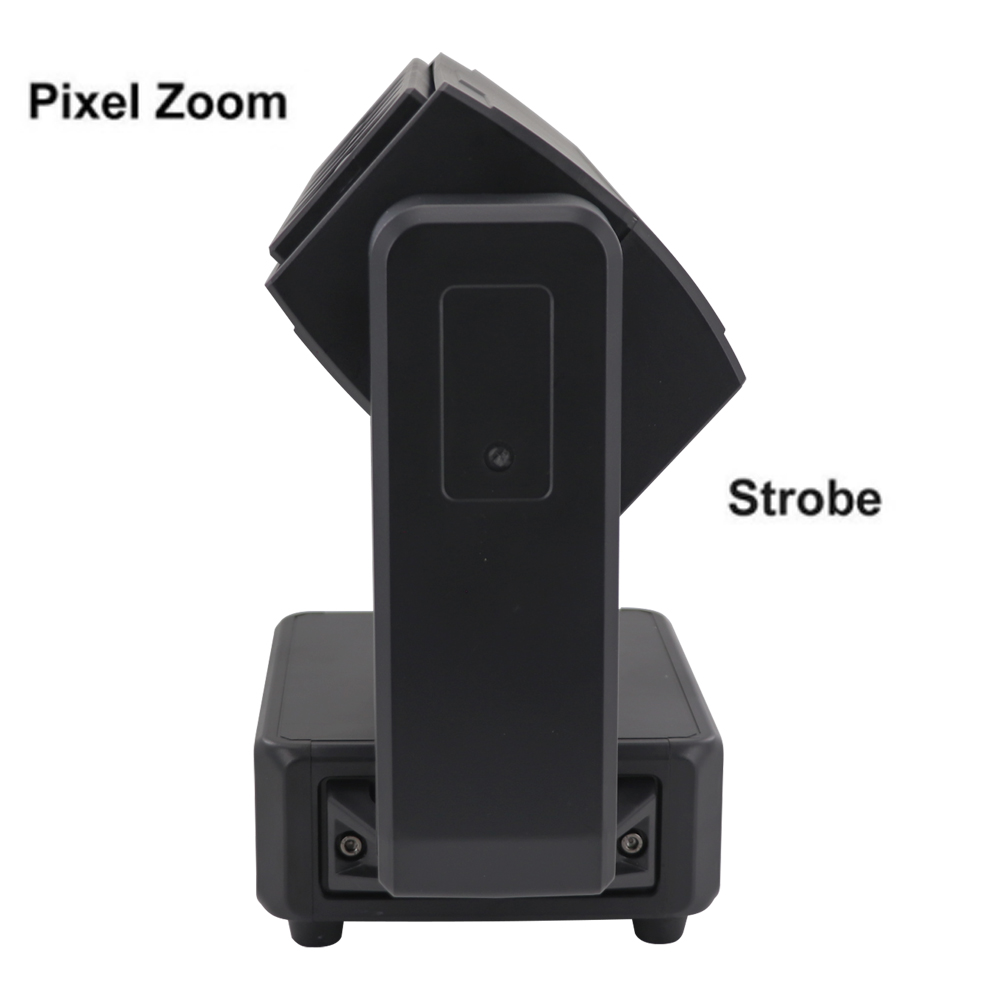

ADL 500 MOVING HEAD ZOOM + STROBE is a compact and reliable FRONT: 5x 60W RGBW 4in1 LED Wash Moving Head with a wide 3.8°- 50° motorised zoom range, BACKSIDE: 42x 3W White LED + 84x 0.3W RGB 3in1 LED ,suitable for indoor venues. Its colour engine, 0–100 % dimmer and 0–20 Hz strobe effects are controllable via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode.

Description

Light Source

Type: Front: 5x 60W RGBW 4in1 LED
Back: 42x 3W White LED + 84x 0.3W RGB 3in1 LED
Power Source: 500W
Lifetime: 50,000h

Optical system

Beam angle: 3.8˚ – 50˚

Control & programming

Control systems: DMX / RDM / Manual setting / Rotary Switches
Display: LCD display with 4 buttons
Protocol(s): DMX (USITT DMX512-A) / RDM (ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 24 / 29 / 105
Control modes: 3
Dimmer curves: Inv. Square / linear / Square Law / Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz

Connections

Signal connection: XLR 3-Pin In / Out
Mains connection: powerCON In / Out

Electrical specifications

Power input: 100-240V AC 50/60Hz
Max power: 500W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP20
Fixture housing: Aluminum
Color: Black

Dimensions and weight

Length: 350mm / 13.78 ins
Width: 320mm / 12.60 ins
Height: 461mm / 18.15 ins
Weight: 8kg (16 lbs.)

Accessories

  • ADL400B-W
