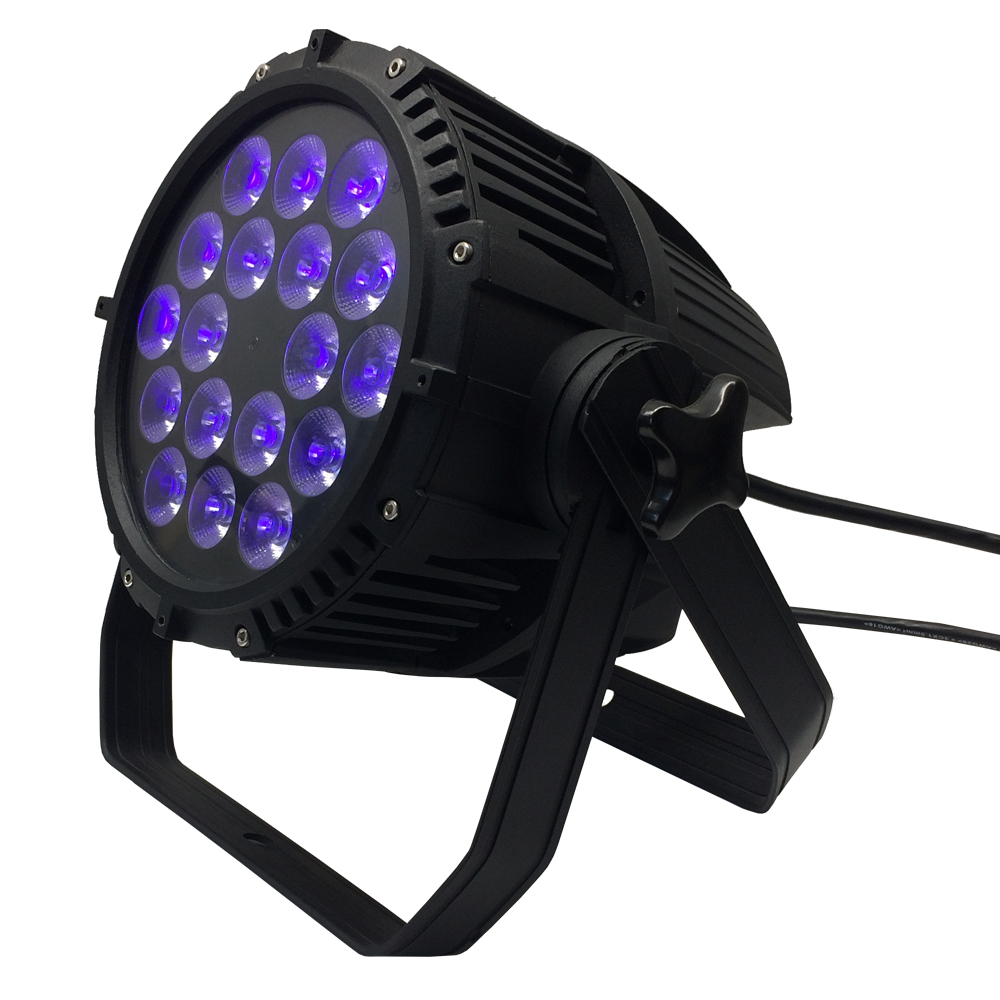

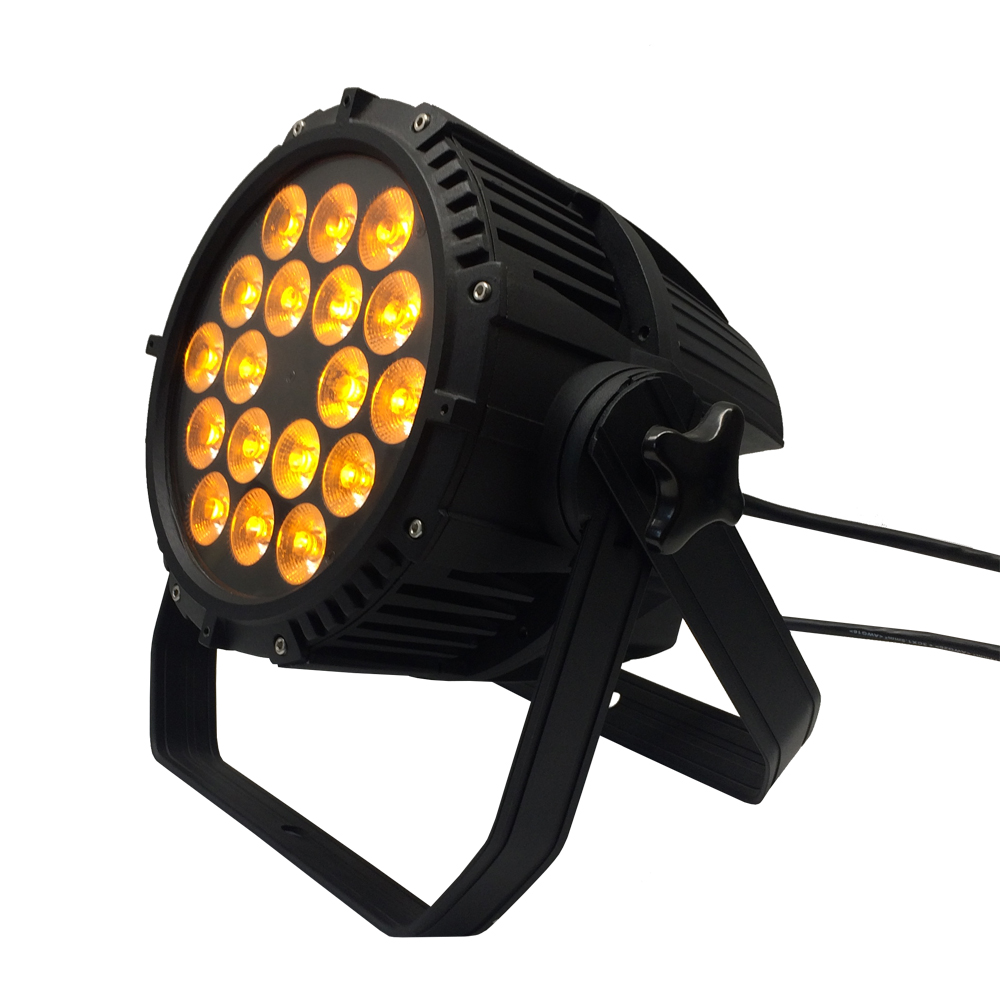

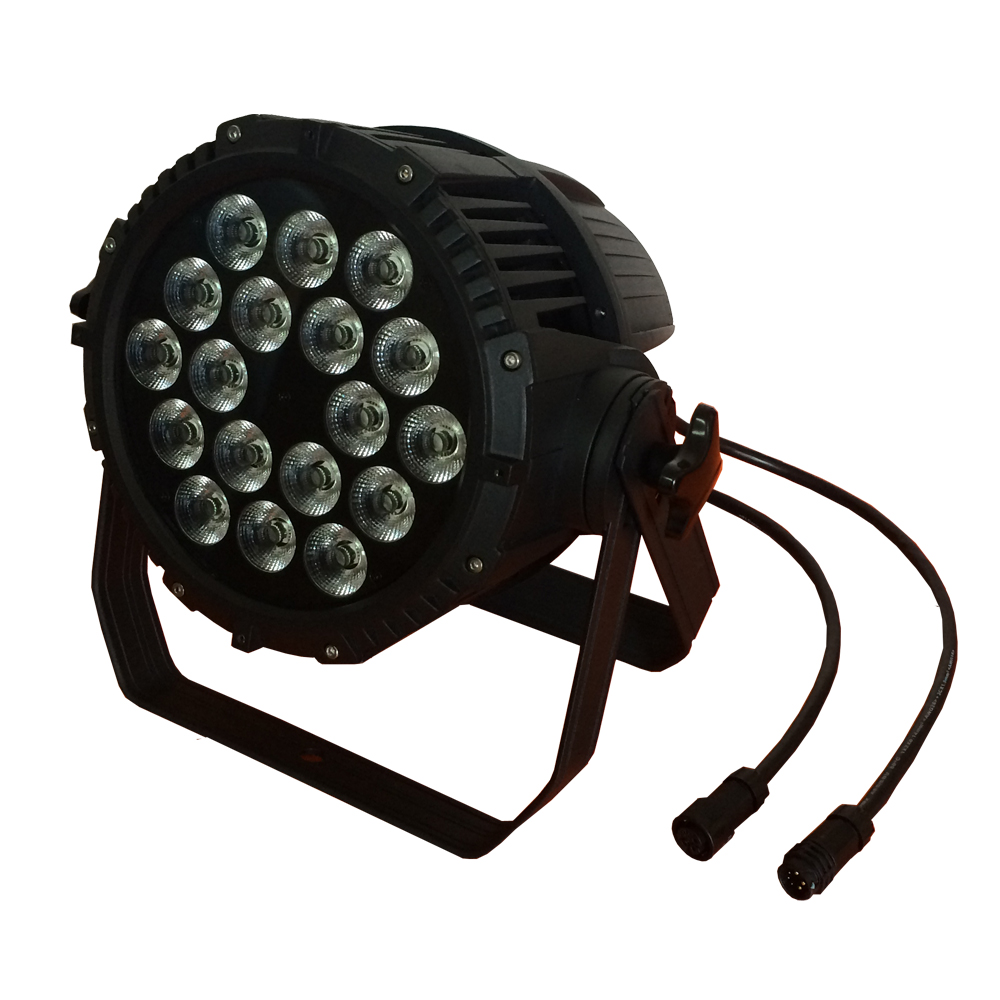

ADL 18x6in1 RGBWA UV LED Spot

ADL 18x6in1 RGBWA UV

The ADL 18x6in1 RGBWA UV IP65 is a solid and reliable 18x 10 watt RGBWA UV LED Spot suitable for outdoor venues. it is new design for DMX singal and main power cable Combines one cable, it will be more easy for installing.Each function and effect, including its 0–100 % dimmer, 0–20 Hz strobe function and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. the ADL 18x6in1 RGBWA UV projects a bright, soft field of coloured light with a 15° 25° or45° fixed beam angle. Its silent, fanless operation and strong 4.8 kg design makes it a very popular Spot, added at almost every lightshow and at any event or festival in Europe.

Description

Light Source

Type: 18 x 6in1 RGBWA UV LEDs
Power Source: 180W
Lifetime: 50,000h

Optical system

Beam angle: 15˚, 25˚, 45˚

Control & programming

Control systems: DMX/RDM / Manual setting / Rotary Switches
Display: LCD display with 4 buttons
Protocol(s): DMX (USITT DMX512-A)/RDM(ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 6 / 10
Control modes: 2
Dimmer curves: Inv. Square / linear / Square Law / Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK, 24KHz, 30KHz

Connections

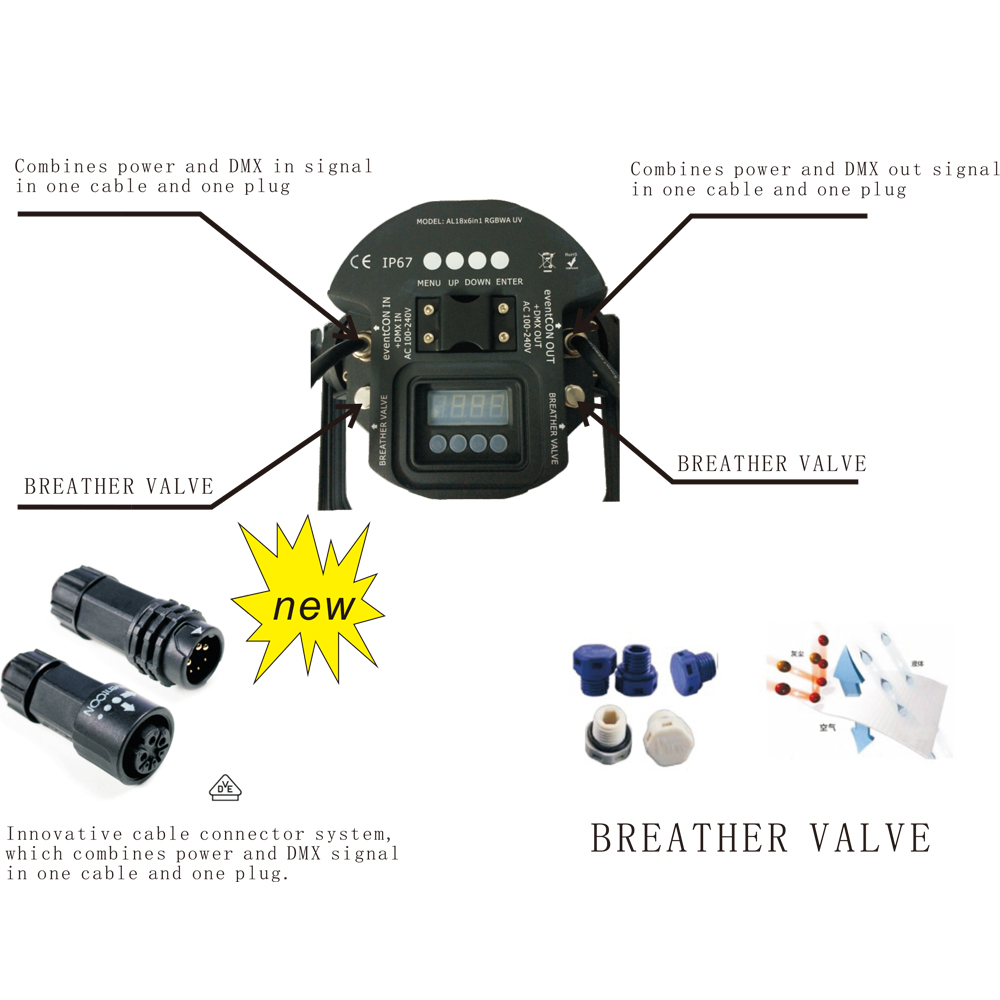

Signal+power connection: Combines power and Dmx in signal in one cable and one plug

Electrical specifications

Power input: MW PSU 100-240V AC 50/60Hz
Max power: 180W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP65
Fixture housing: Aluminum
Color: Black

Dimensions and weight

Length: 370mm / 14.57 ins
Width: 300mm / 11.81ins
Height: 250mm / 9.85ins
Weight: 7.0KG (14 lbs.)
