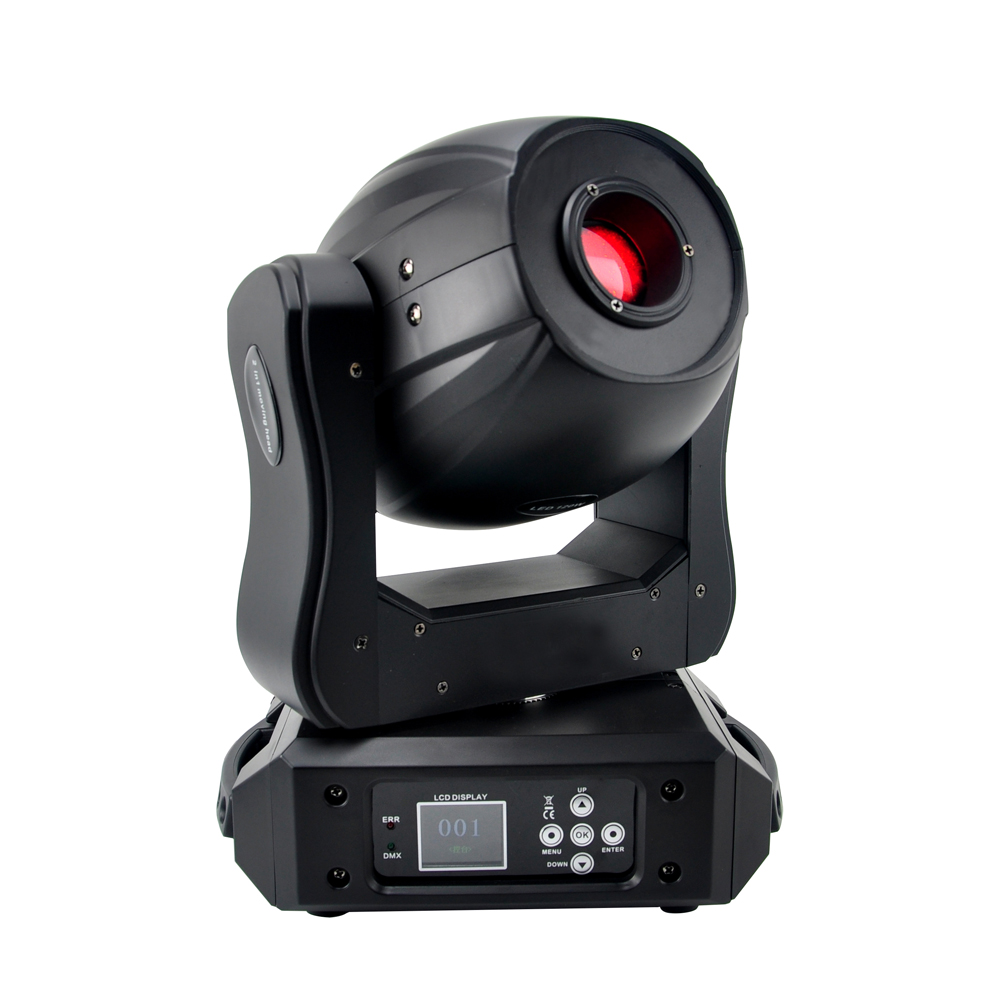

ADL 150W SPOT MOVING HEAD is a compact and reliable Moving Head with a 150 watt white Spot, suitable for indoor venues. Its 7 gobos + open with motorised focus and 7 dichroic colours + white with rainbow-flow effect create nice, Equipped with dimmer, strobe and gobo flow and -shake effects, it can create a wide range of vibrant effects. All features and effects can be controlled via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode.
With a single press on the button, you can activate Auto run and Sound-controlled built-in programs, as well as other available features and effects.

Description

Light Source

Type: 1 x 150w white LED
Power Source: 200W
Lifetime: 50,000h

Optical system

Beam angle: 3.8˚

Control & programming

Control systems: DMX / RDM / Manual setting / Rotary Switches
Display: LCD display with 4 buttons
Protocol(s): DMX (USITT DMX512-A) / RDM (ANSI/ESTAE1.20)
Software update: DMX link
DMX channel: 6 / 10
Control modes: 2
Dimmer curves: Inv. Square / linear / Square Law / Theatre
PWM: 10KHz, 12KHz, 16KHz, 18HK,24KHz, 30KHz

Connections

Signal connection: XLR 3-Pin In / Out
Mains connection: powerCON In / Out

Electrical specifications

Power input: 100-240V AC 50/60Hz
Max power: 200W

Thermal specifications

Cooling: Convection cooling
Max. Ambient temperature: 45 ° C / 115 ° F
Min. Ambient temperature: – 10 ° C / 14 ° F

Construction

Protection rating: IP20
Fixture housing: Aluminum
Color: Black

Dimensions and weight

Length: 290mm / 11.42 ins
Width: 182mm / 7.17 ins
Height: 400mm / 15.75 ins
Weight: 7.5kg (15 lbs.)

Accessories

  • ADL400B-W
